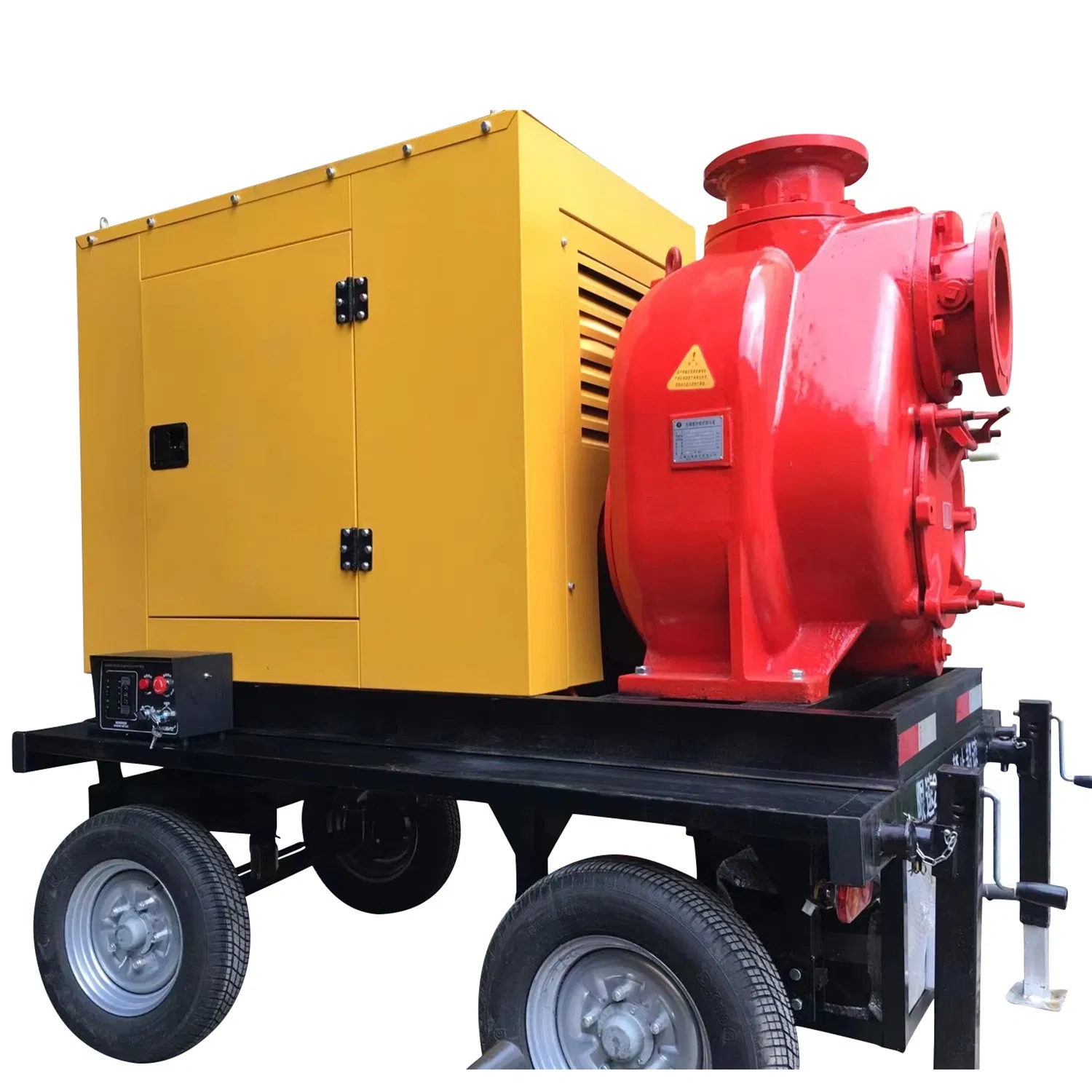

High Suction Flood Control Irrigation Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

1 / 5

High Suction Flood Control Irrigation Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

Customization:	Available
After-sales Service:	1 Year
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

SCP-6

Max.Head

10-30m

Max.Capacity

>400 L/min

Driving Type

Motor / Diesel

Material

Cast Iron

Structure

Single-stage Pump

Power

Solar Energy / Diesel

Application

Sewage & Flood Control

Theory

Centrifugal Pump

Max.Flow

400 M³/H

Suction Lift

7.6 M

Weight

1500 Kg

Product Description

The flood control mobile drainage pump truck can suck and discharge liquids containing large solid particles and long fiber impurities, and can be widely used in municipal sewage and flood control projects, agricultural irrigation, etc. The pump unit has the characteristics of a simple structure, good self-priming performance, strong sewage discharge capacity, high efficiency and energy saving, easy use and maintenance, and integrated or outdoor movable design. This product is more convenient and flexible than a fixed diesel engine pump and is easy to move to suit different places. High-quality domestic or imported diesel engines can be selected according to different working conditions and matched with high-quality and efficient self-priming centrifugal pumps.

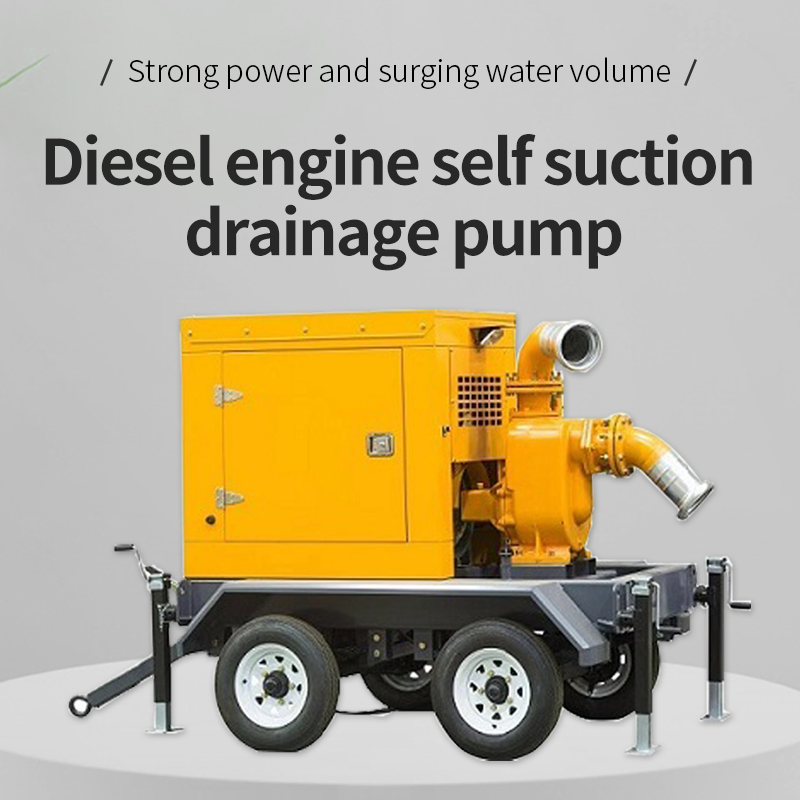

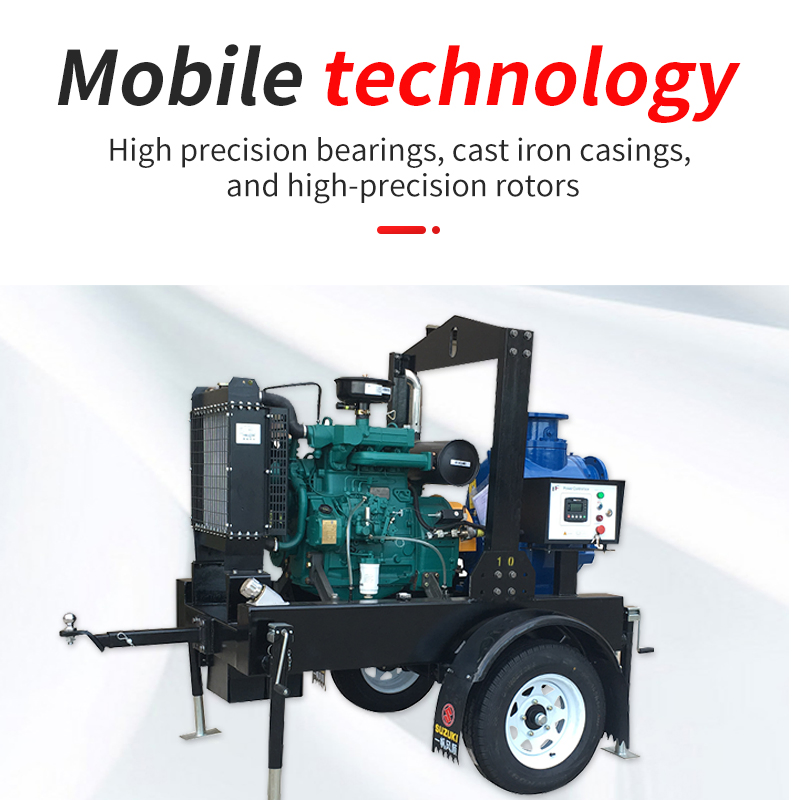

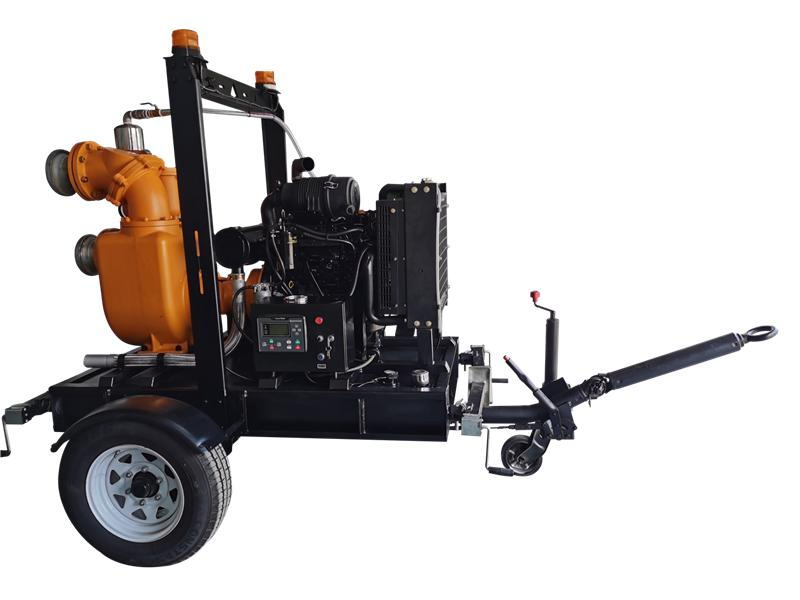

Mobile Trailer Diesel Engine Self-Priming Centrifugal Water Pump

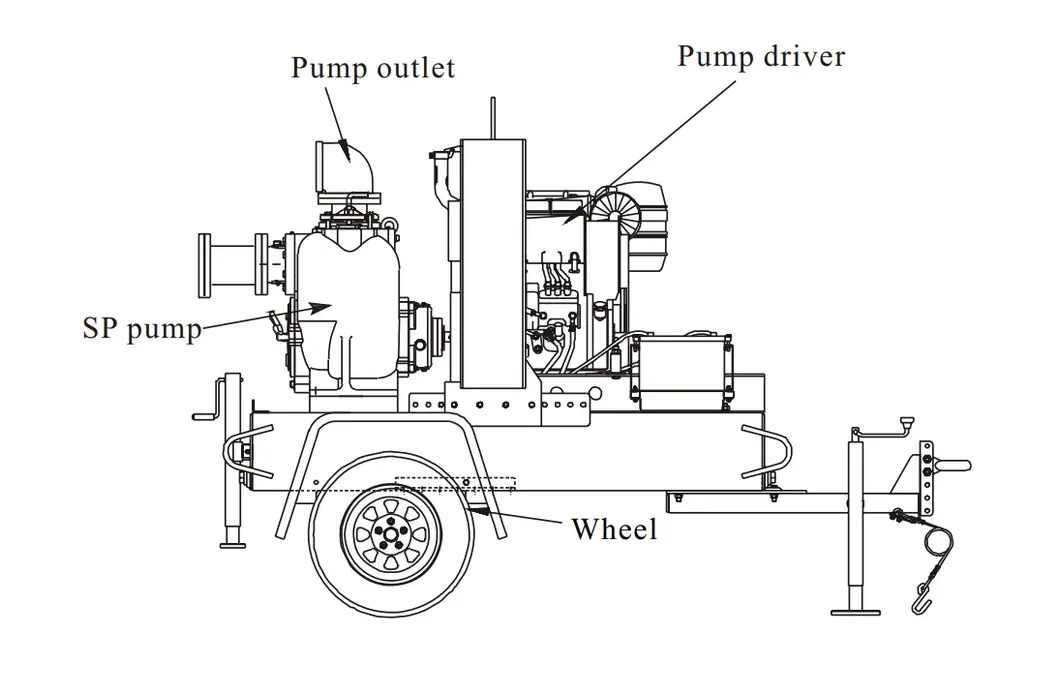

Structure Chart

Technical Parameters

Pump Information	Model: SCP-6 Type: Portable diesel engine pump Inlet/Outlet: 6 inch * 6 inch (DN150)
Construction Material	Casing: Cast iron Impeller: Iron Shaft: 45# steel Seal: Mechanical seal
Performance	Max Flow: 350m³/h Max Head: 30m Self-priming: 7.6m Max Solids: 76.2mm
Driving Motor	Prime Power: 42kw @ 1500 rpm Displacement: 3.12L Fuel Consumption: 258g/kw.h
Configuration	Bare Pump + Diesel engine + High elastic coupling + Control panel + Two wheels trailer + raining cover + Steel base plate with 60 liters fuel tank
Packing Info	Plywood case Size: 3.8 * 1.6 * 1.6m Gross Weight: 1100kg

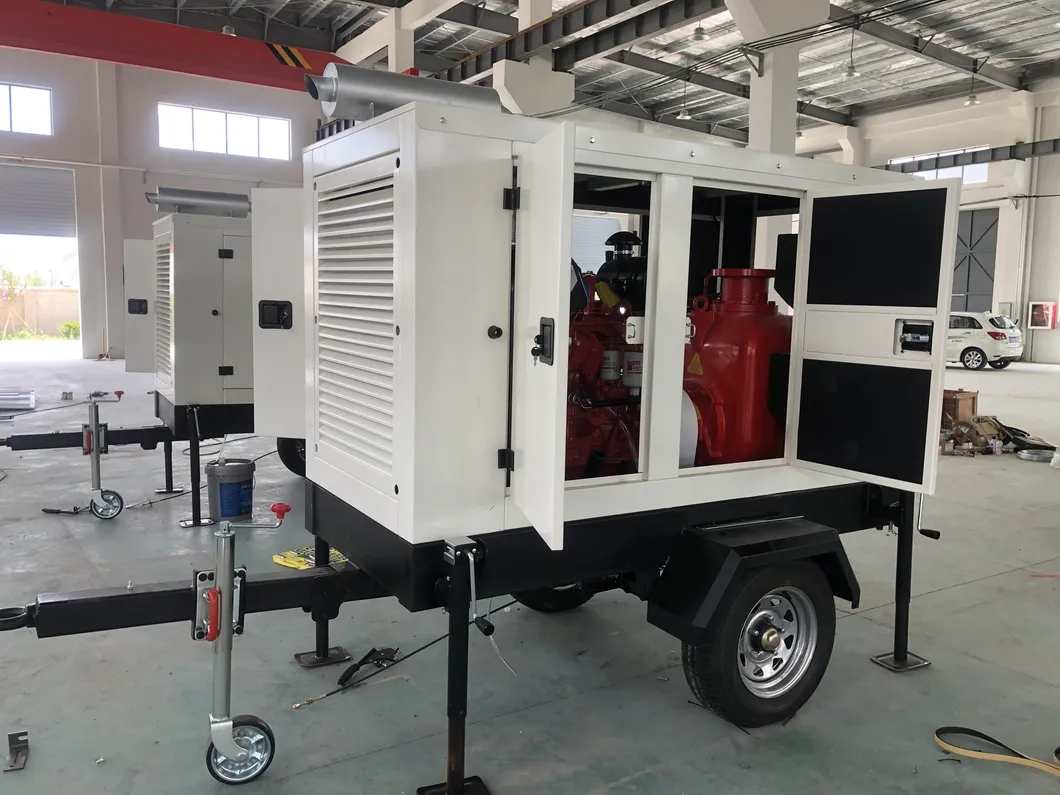

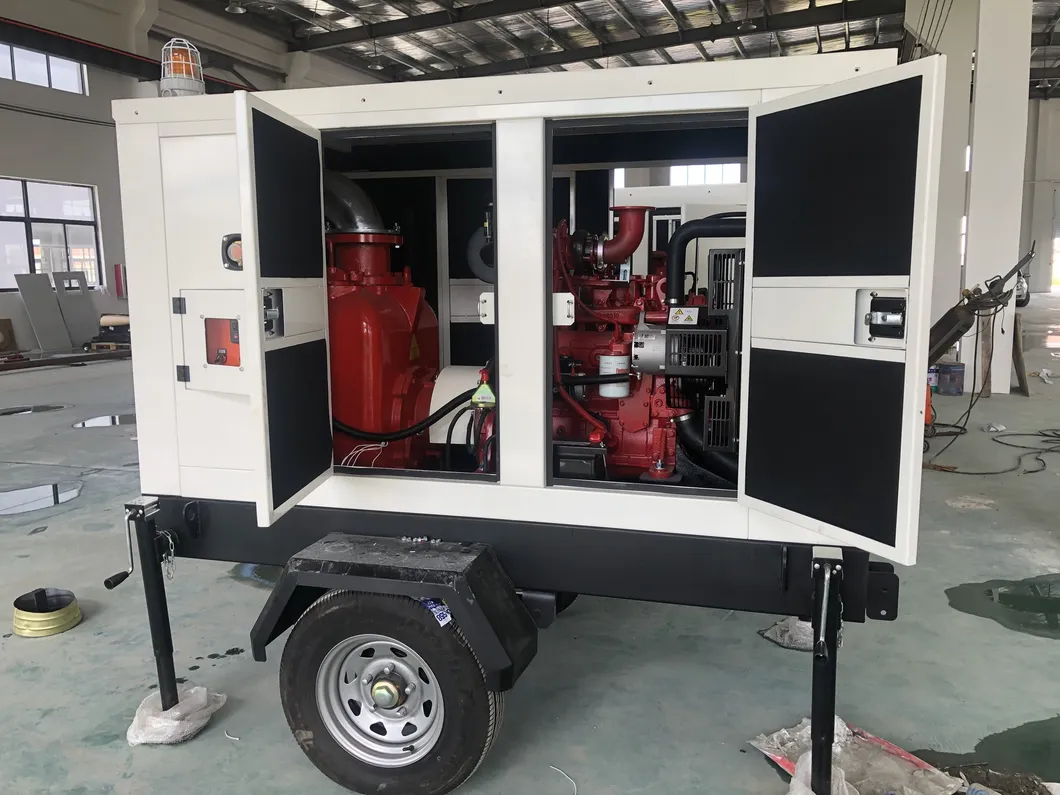

Detailed Photos

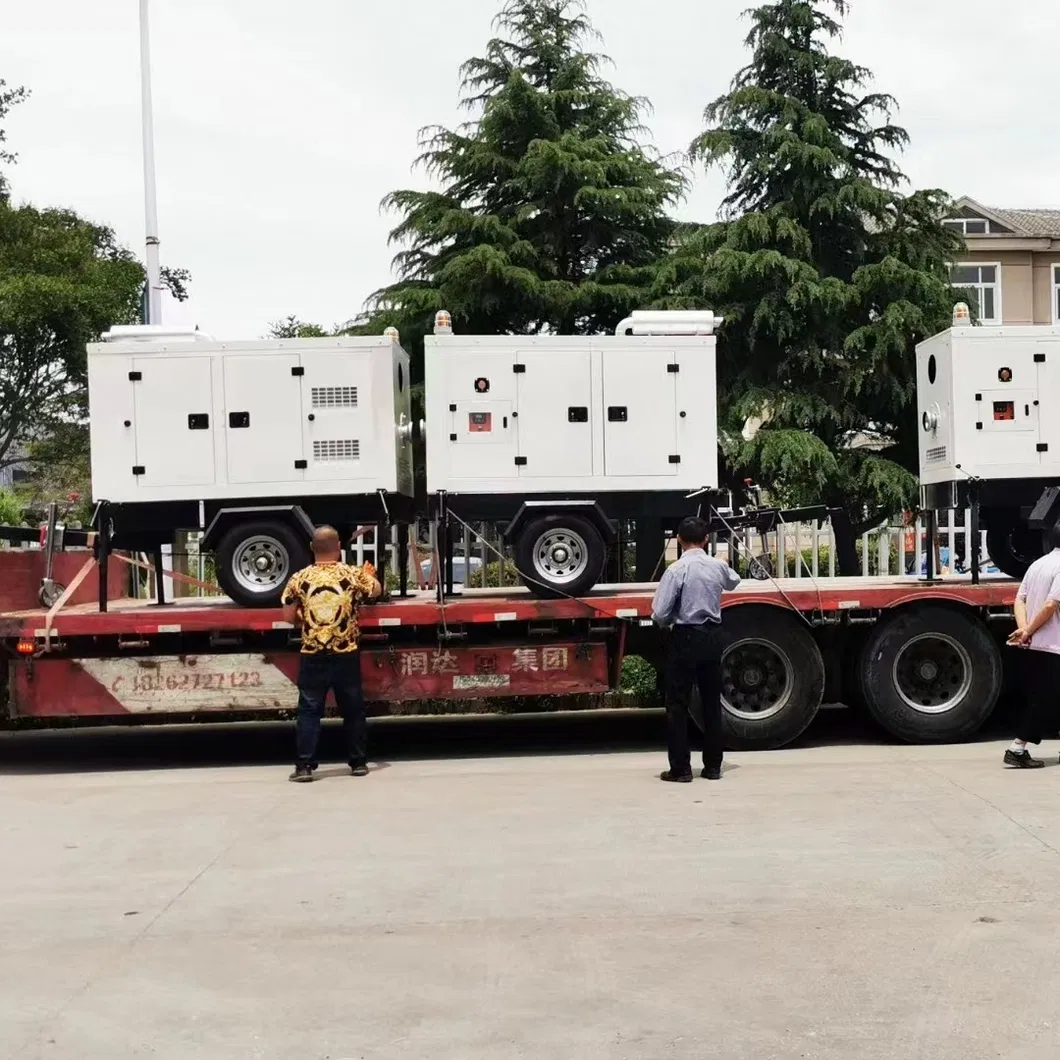

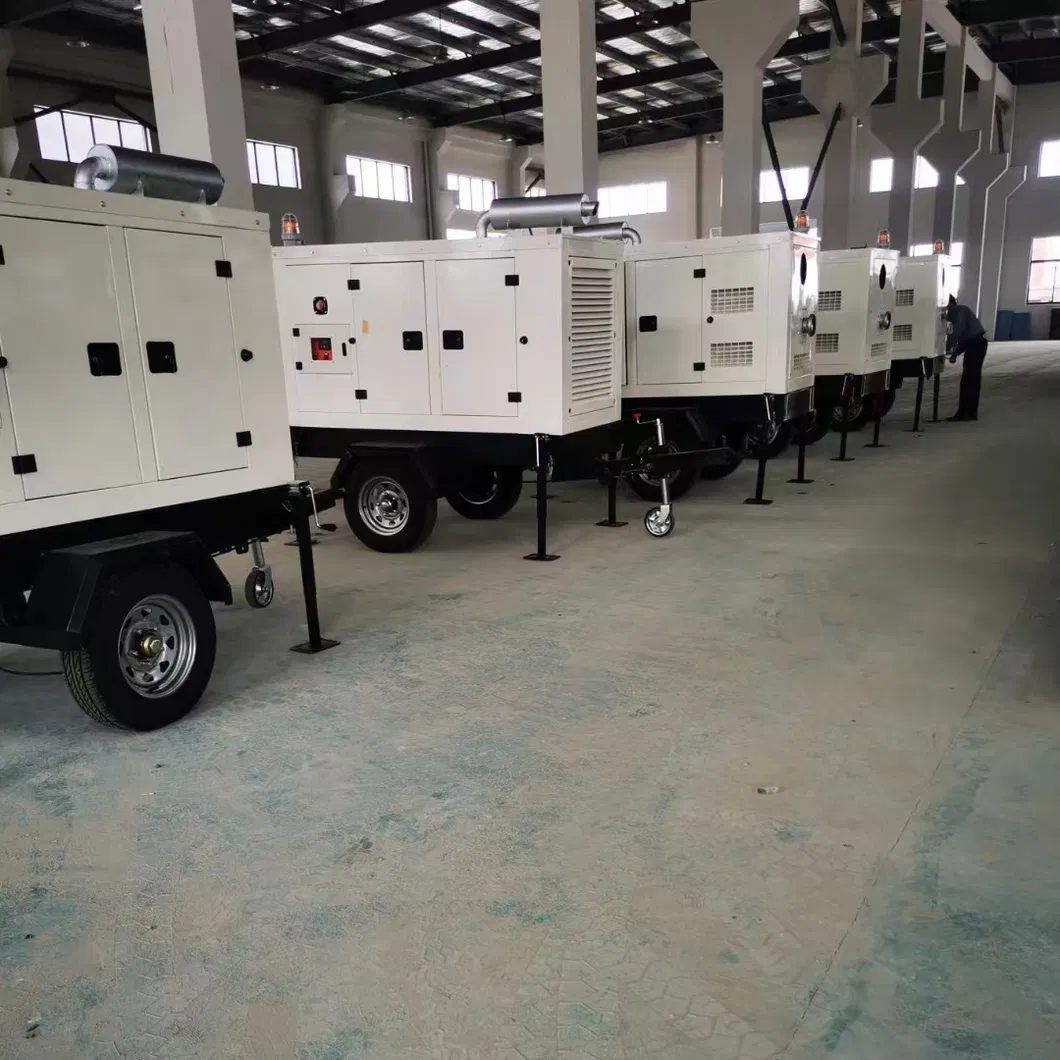

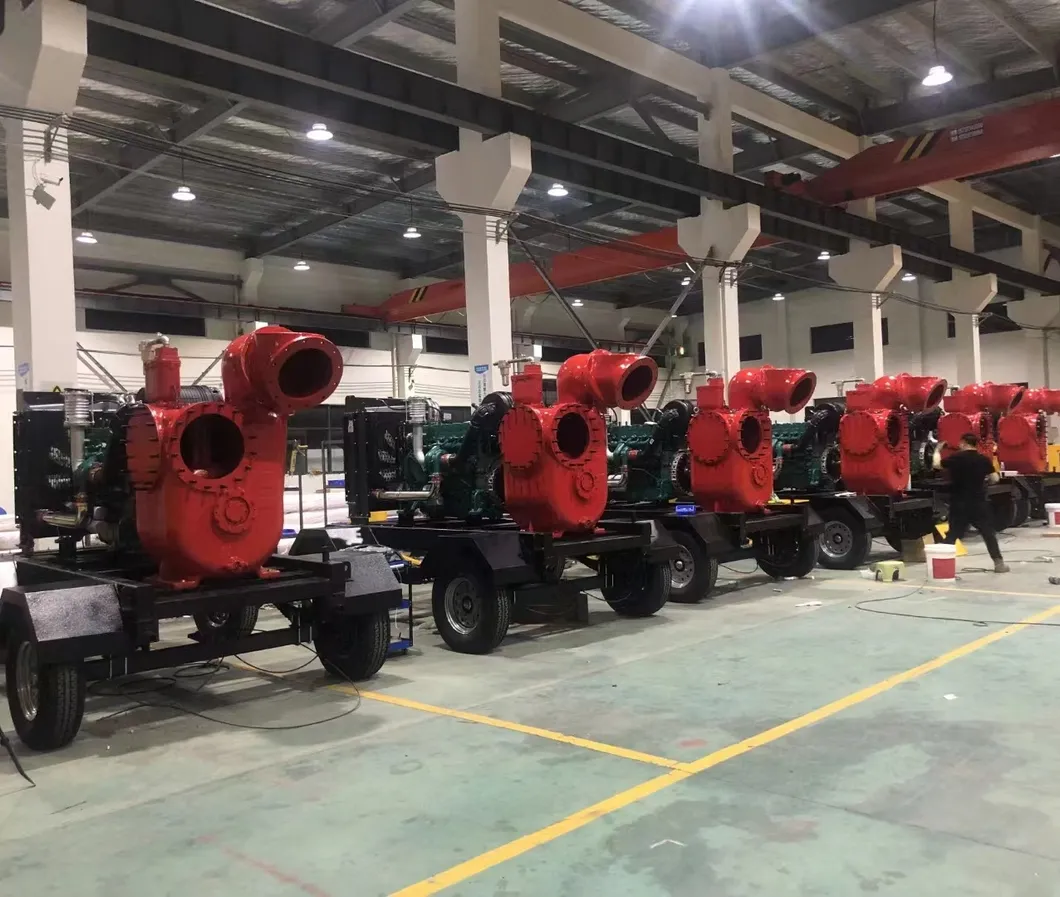

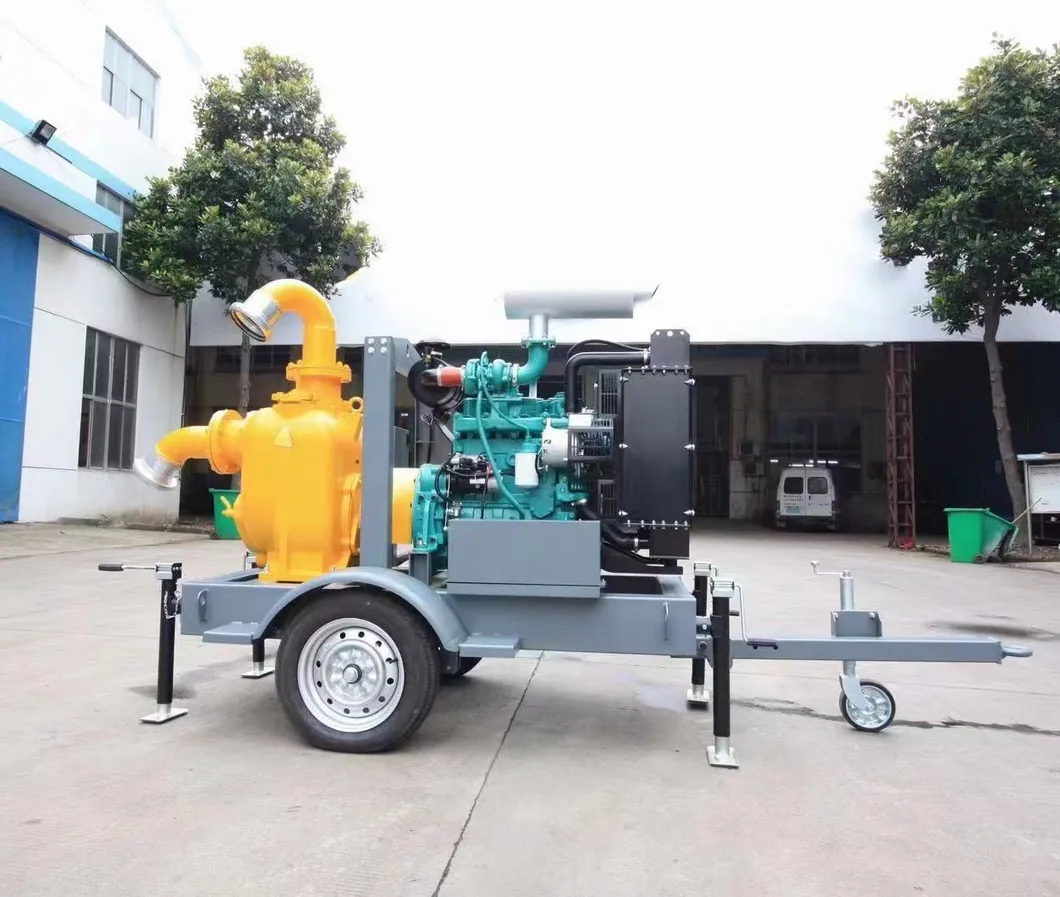

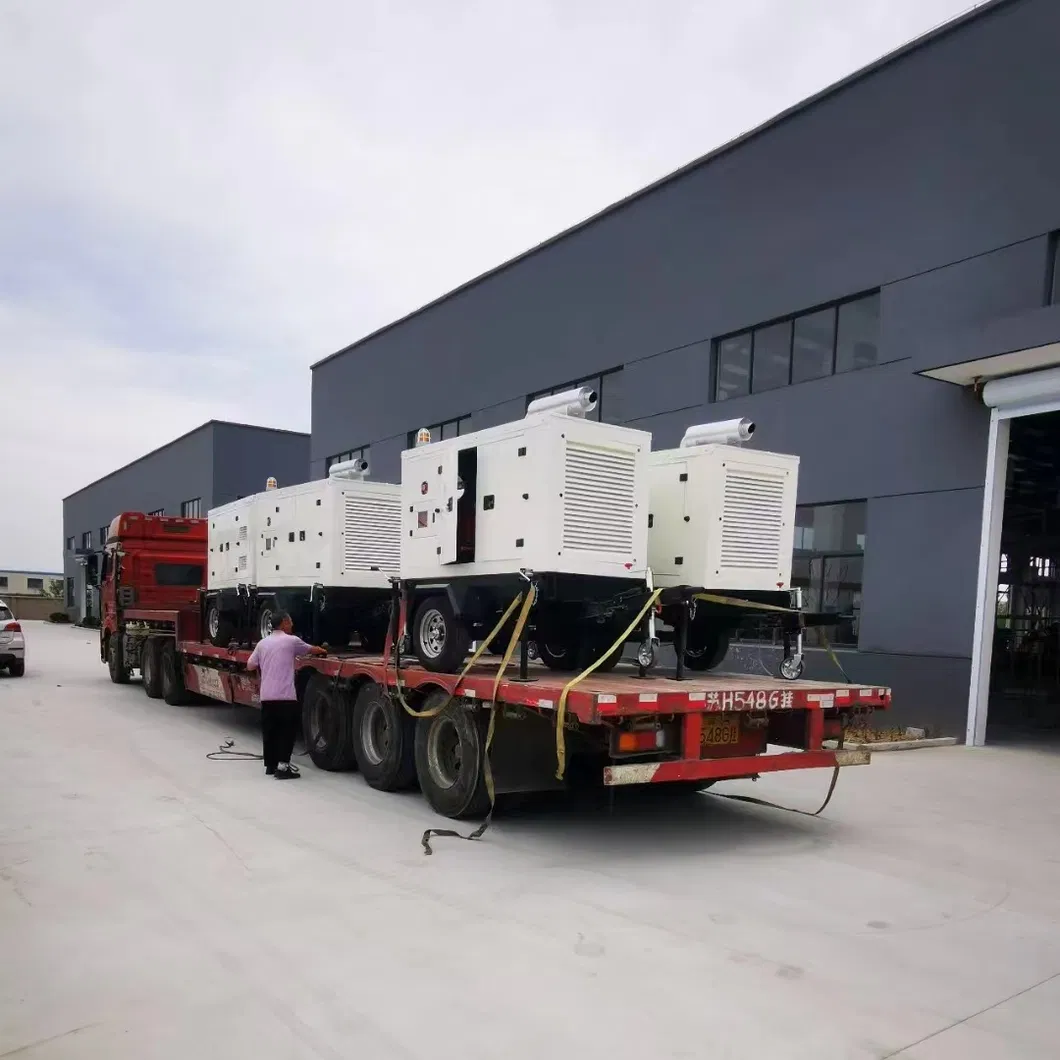

Packaging & Shipping

Exhibition

Frequently Asked Questions

What are the primary applications for this mobile drainage pump?

The pump is widely used for municipal sewage management, flood control projects, agricultural irrigation, and mobile water supply where high capacity and portability are required.

What kind of debris can the SCP-6 pump handle?

It is designed to handle liquids containing large solid particles (up to 76.2mm) and long fiber impurities, making it highly effective for sewage and floodwater.

How high is the self-priming capability?

The pump features excellent self-priming performance with a vertical suction lift of up to 7.6 meters.

Is the unit easy to transport to different sites?

Yes, the unit is integrated into a mobile trailer with two wheels and a raining cover, allowing it to be easily towed to various outdoor locations for emergency use.

What materials are used for the main pump components?

The pump casing and impeller are made of durable cast iron, while the shaft is constructed from 45# steel with a high-grade mechanical seal for longevity.

What is included in the standard configuration?

The complete set includes the bare pump, a high-performance diesel engine, high elastic coupling, a control panel, a mobile trailer with raining cover, and a steel base plate with a 60-liter fuel tank.
