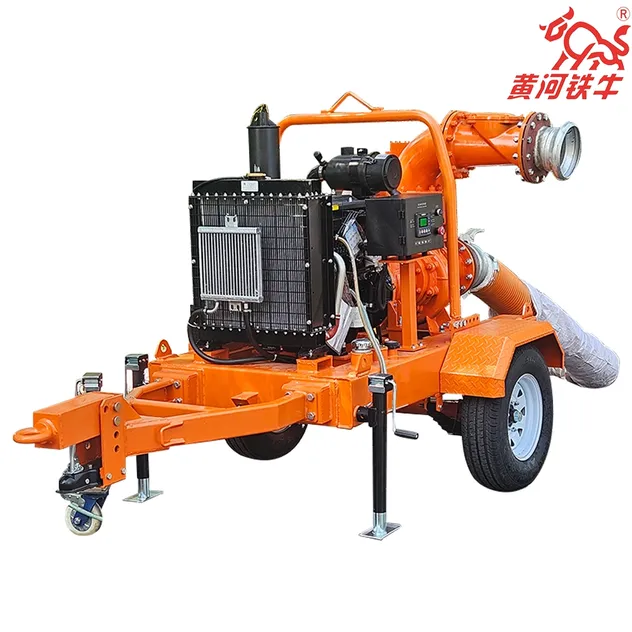

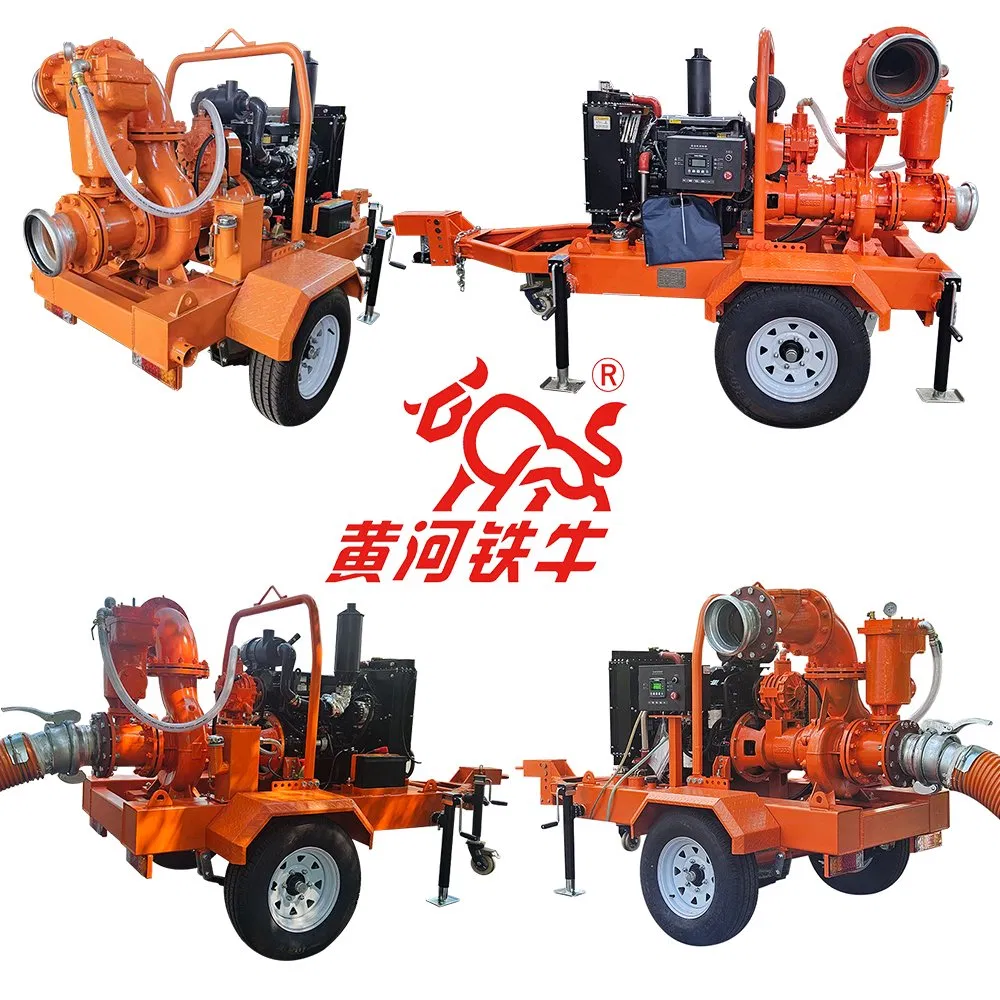

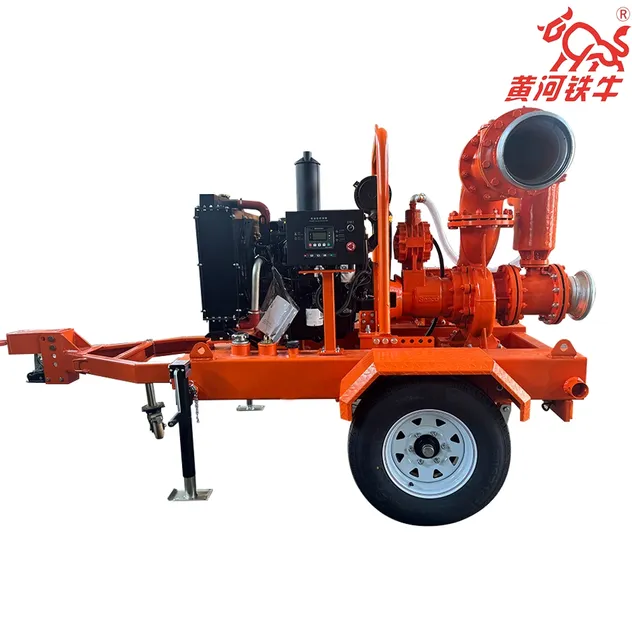

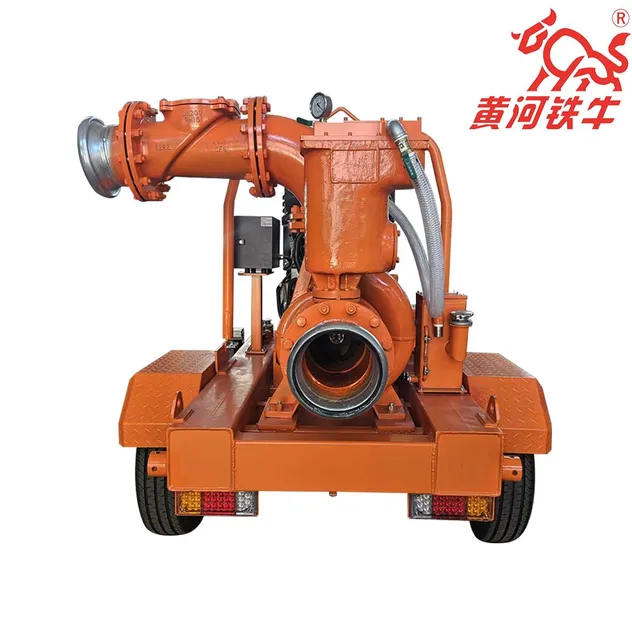

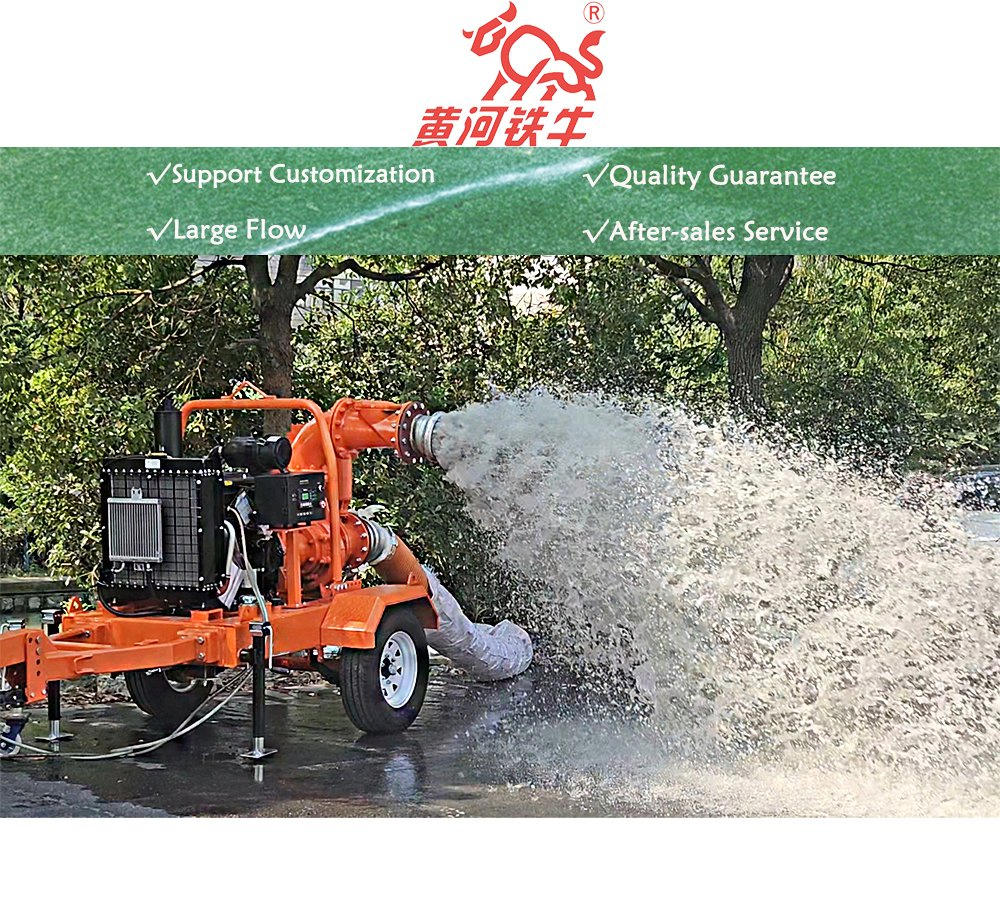

M8 High Vacuum Self-priming Drainage Trailer Pump
The specially designed impeller allows smooth passage of large particles, ensuring powerful and worry-free sewage discharge. Its wide operating speed range (1500-2000 rpm) ensures stable performance under various conditions, with a maximum drainage capacity of 800 m³/h, leading in efficiency.
TECHNICAL SPECS
Our high vacuum system has patent certification. High-performance Oil-circulated Vacuum System with a maximum vacuum of -0.099MPa and 100 m³/h exhaust capacity. Built-in cooling system ensures stable operation without oil overheating. The air-water separator prevents water from entering the oil tank, maintaining efficiency.

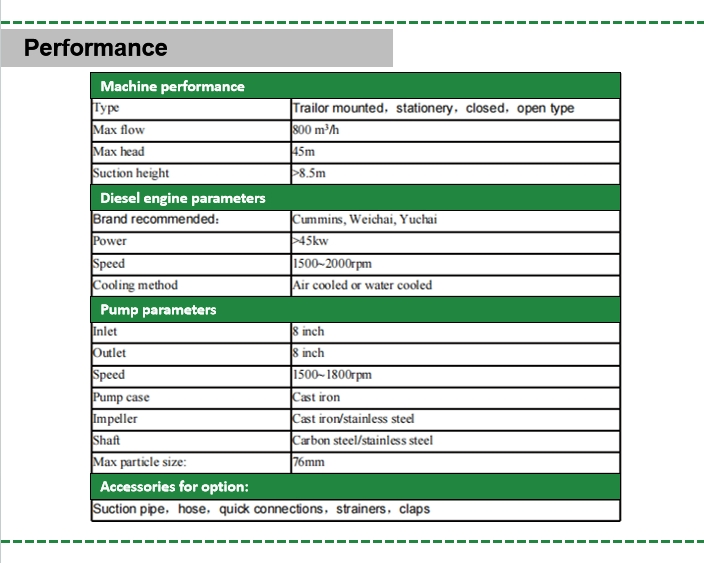

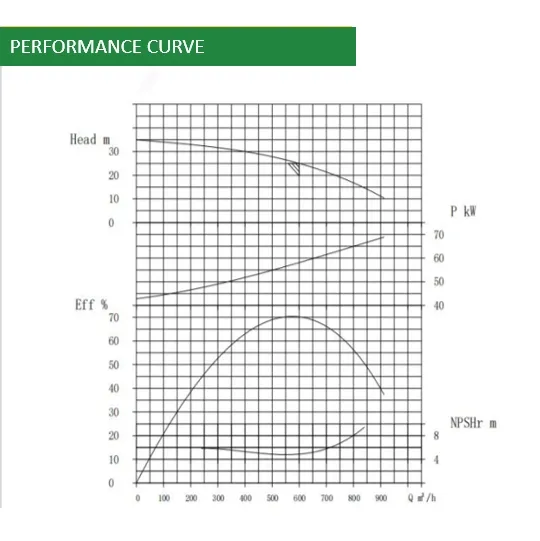

| Machine Performance | |
|---|---|
| Type | Trailer mounted, stationery, closed, open type |
| Flow | 300~800 m³/h |
| Head | 20~160m |
| Suction height | >8.5m |
| Diesel Engine Parameters | |
| Brand recommended | Cummins, Weichai, Yuchai |
| Power | >45kw |
| Speed | 1500-2000rpm |
| Cooling method | Air cooled or water cooled |
| Pump Parameters | |
| Inlet / Outlet | 8 inch / 8 inch |
| Pump case | Cast iron |
| Impeller | Cast iron / Stainless steel |
| Max particle size | 76mm |

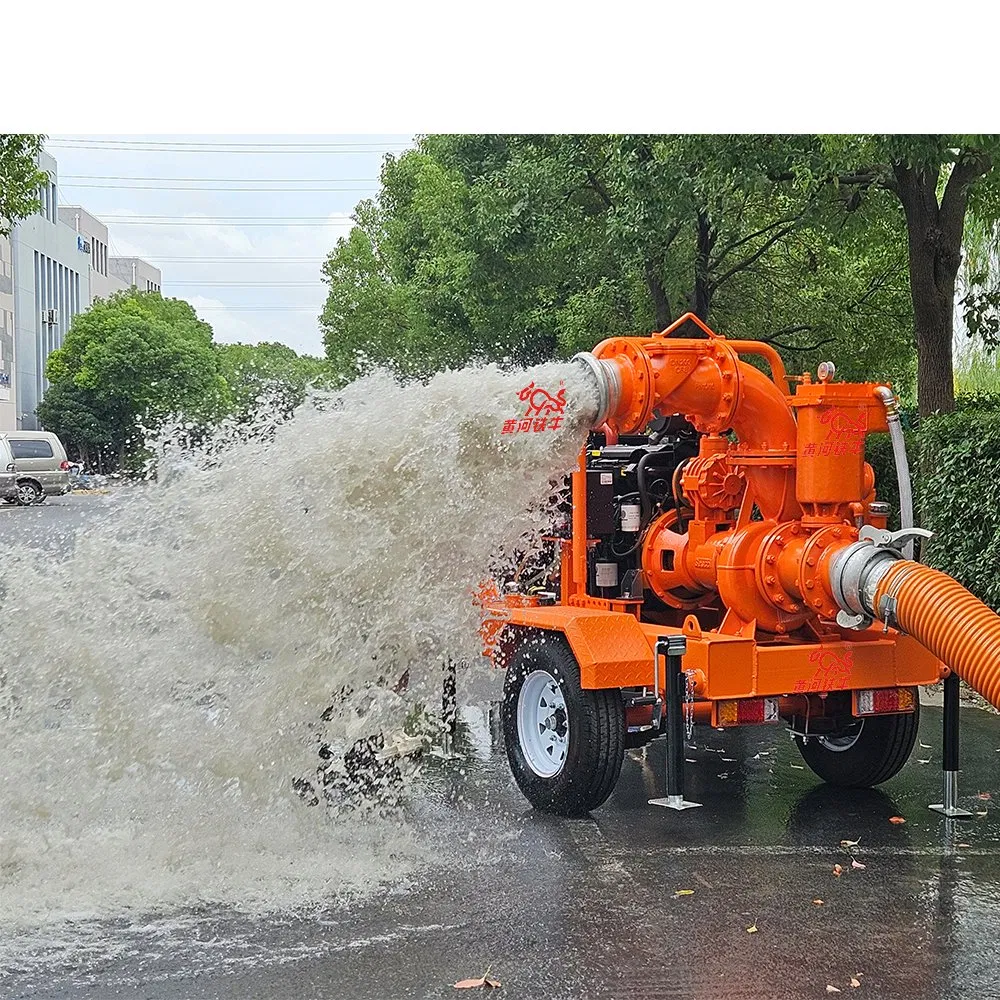

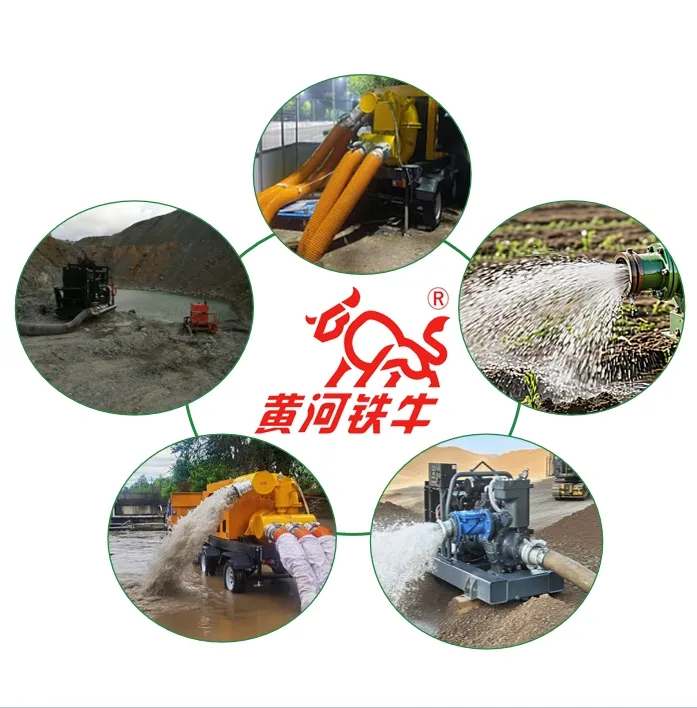

Wide Range of Applications:
Our company is a new enterprise specializing in pump design, research and development, and manufacturing, with rich industry experience. The company has developed a series of patented high-vacuum mobile pump trucks, drainage pump stations and other products. These products have significant advantages such as easy mobility, simple operation, high suction capacity, durability, and energy conservation. They are widely used in municipal pipeline dredging, on-site sewage discharge, underground drainage, farmland drought resistance, mine water pumping, and flood rescue.
