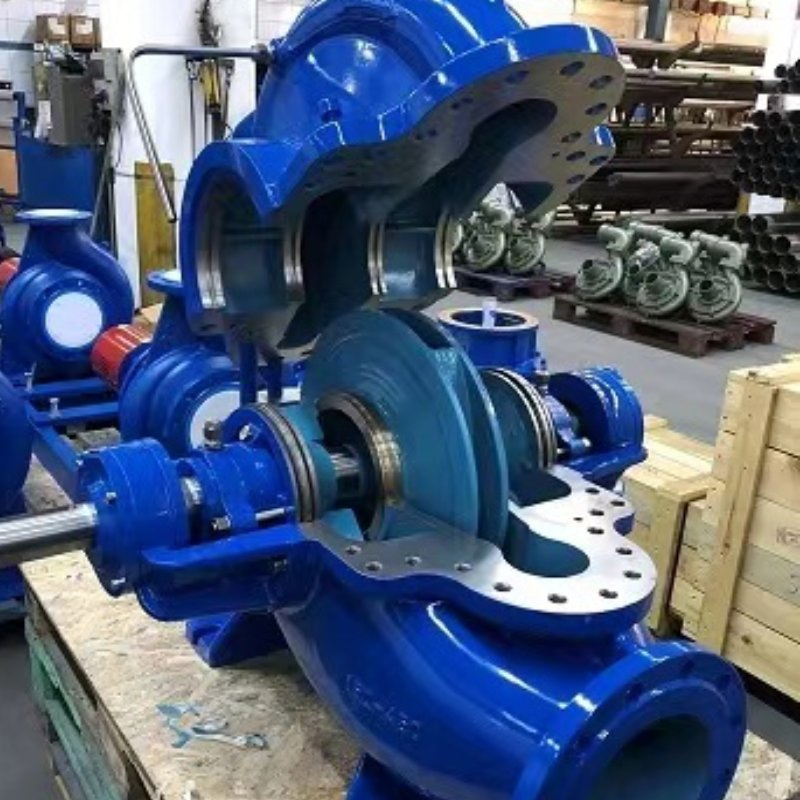

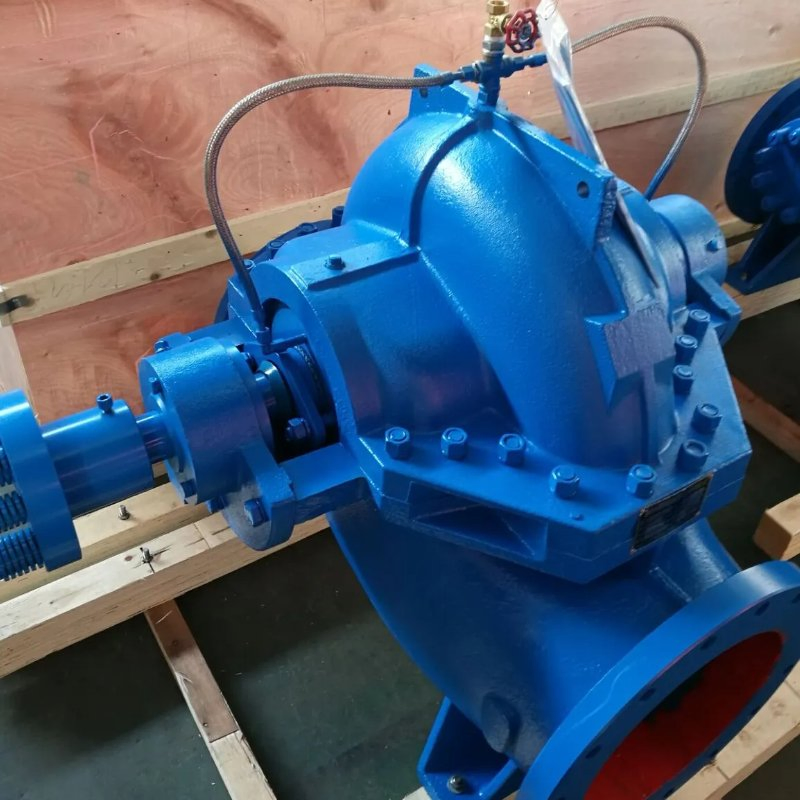

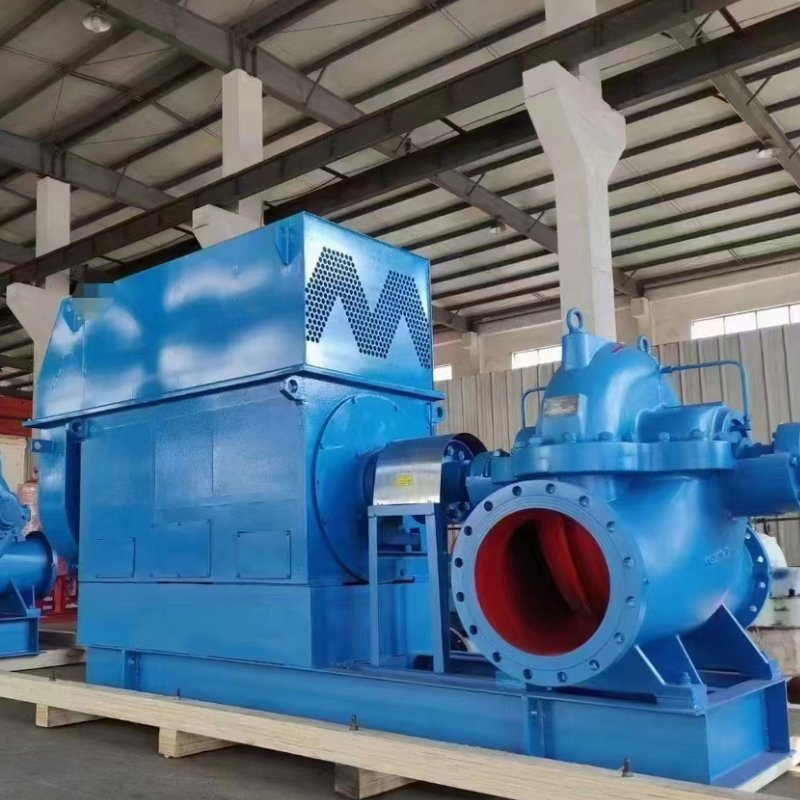

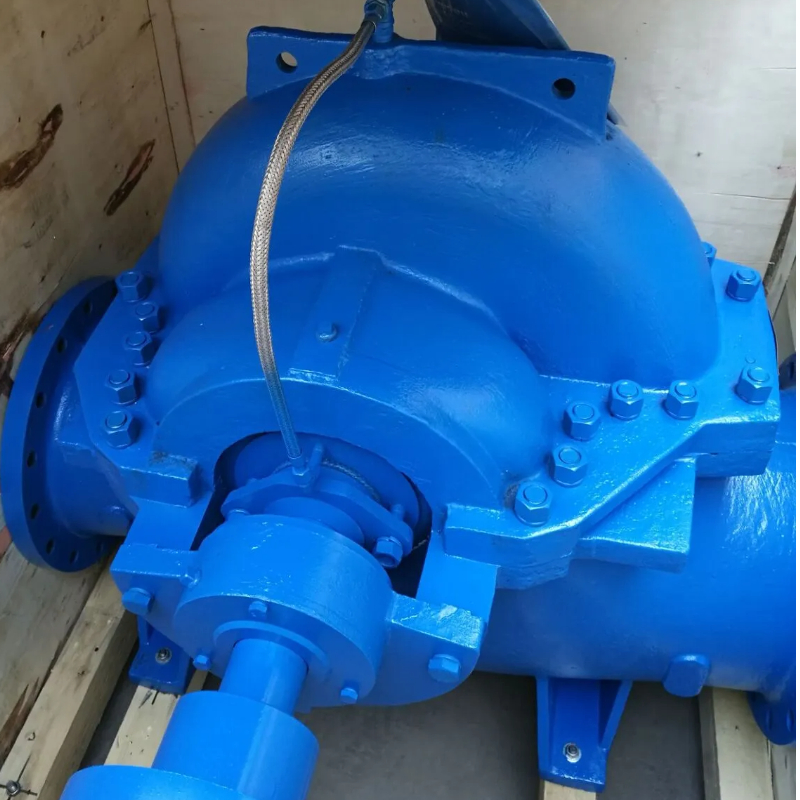

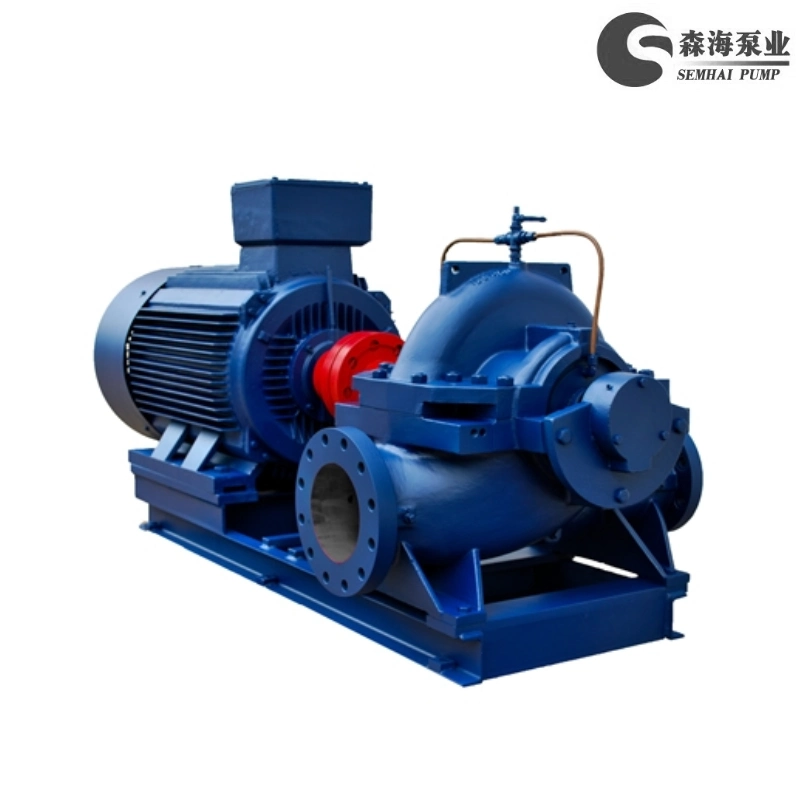

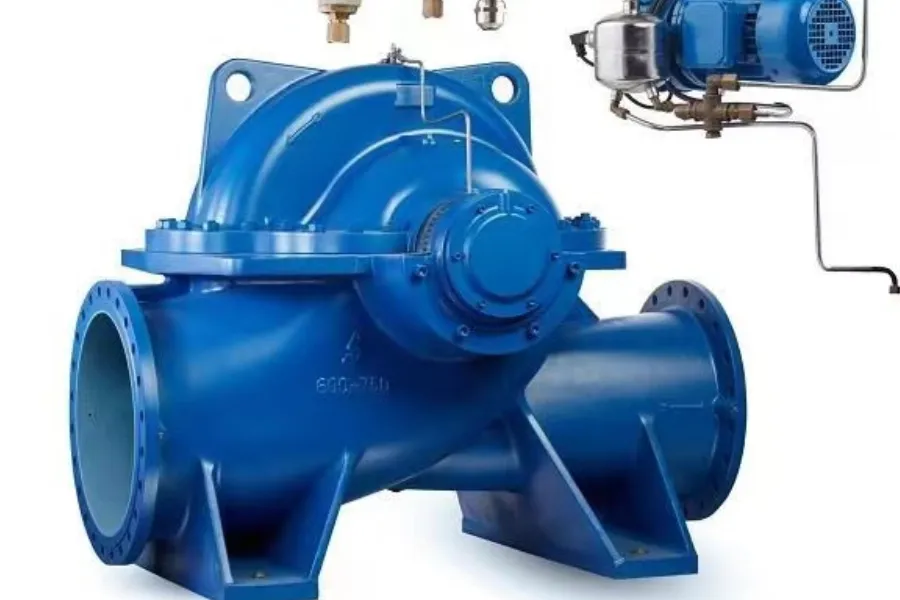

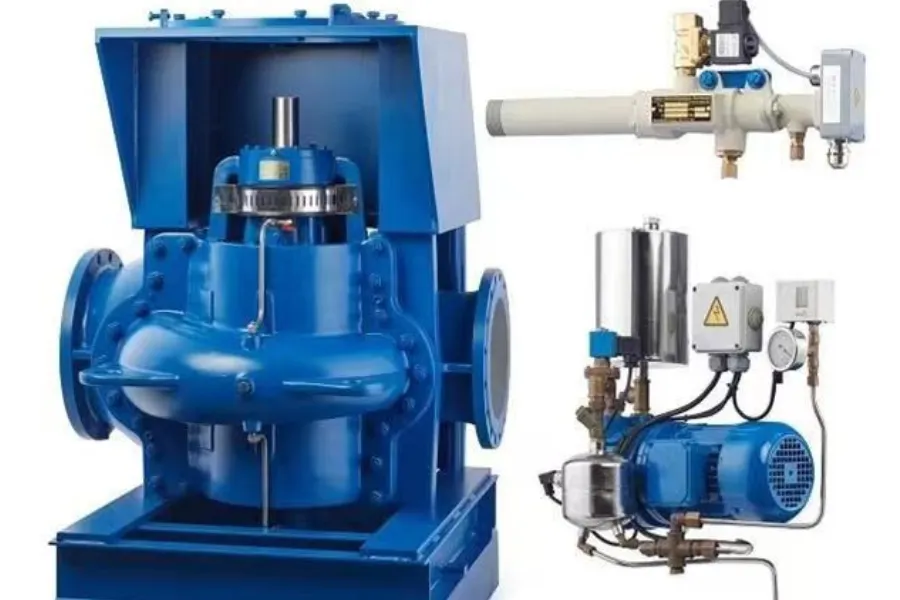

The SOW series horizontal single-stage split-casing double-suction centrifugal pump is the latest generation of split-casing double-suction pump, with notable features of perfect spectrum, good model and outstanding performance, innovative and reliable structure, easy maintenance and long life.
By using the prime impeller and modified impeller and cutting type, the series offers a high efficiency and broad performance range, meeting user needs at any point in the work flow and head. This product has reached leading technical levels and meets ISO2548C, GB3216C, and GB/T5657 standards.
| Pump Speed | 298, 372, 490, 585, 740, 990, 1480 and 2950rpm |
| Motor Voltage | 380V/415V, 3.3KV, 6KV and 10KV |
| Caliber | 80-1600mm (flange dimensions conform GB/T17241.6-1998) |
| Flow Range | 68-30000 m³/hr |
| Head Range | 6-230m |
| Maximum Pressure | 1.0Mpa to 1.6Mpa; Special configuration up to 2.5Mpa |

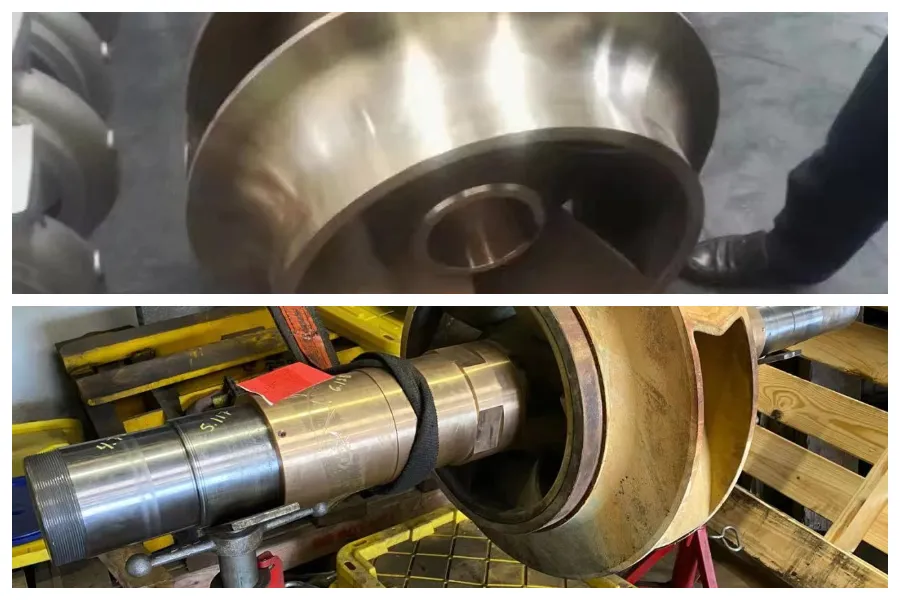

Between-the-bearings: Split-case pumps mount the impeller on a shaft supported by bearings on both sides, ensuring stability and reduced vibration.
High-precision casting impeller: Available in cast iron, stainless steel, and bronze to ensure performance across different media.

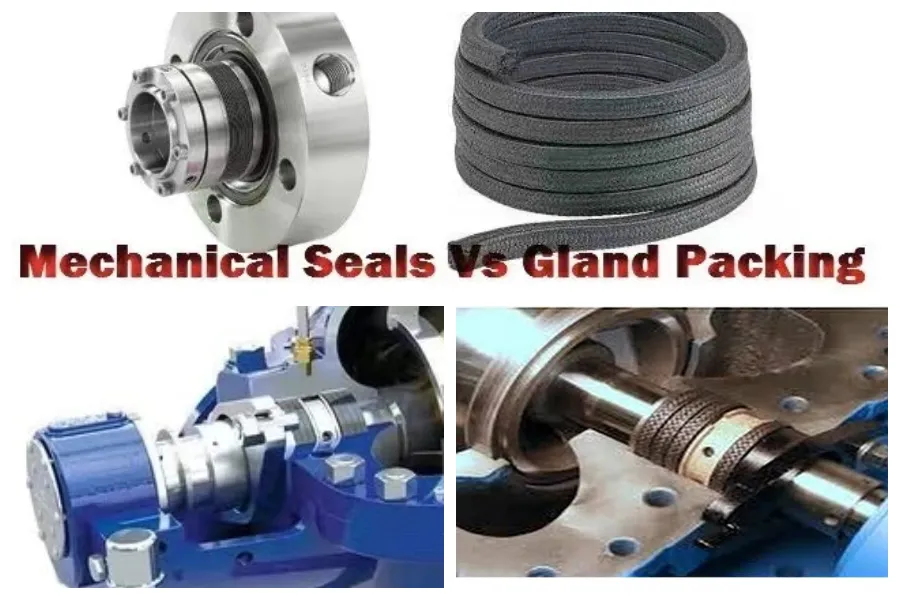

Sealing Solutions: Traditional packing seals minimize fluid loss using rope-like materials. For more demanding applications, Mechanical seals are preferred for their durability and leak-prevention capabilities.

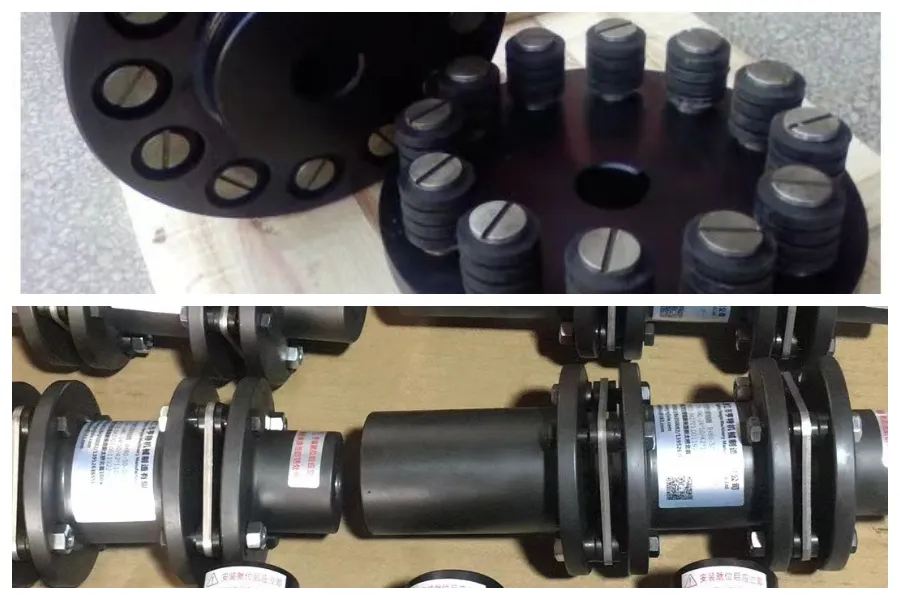

Flexible Couplings: We use wear-resisting disc or pin couplings. Unlike rigid types, these accommodate vibrations and thermal expansion, protecting shafts and bearings from premature wear.
This series is widely utilized in:
