Warranty: 1year
Product Type: HDPE Pipes for Water and Sewer Applications
Screw No.: Single-screw
Send Inquiry

Product Description

Technical Specifications
Model NO.
SN-PE110, SN-PE400, SN-PE800, SN-PE1200
Automation
Automatic
Computerized
Computerized
Certification
CE, ISO9001:2008, TUV
Pipe Structure
Single Layer, Double Layer, Three Layers
Control System
Siemens PLC Touching Screen
Electric Parts
ABB, Rkc, Omron, Siemens
Pipe Diameter
16mm - 1600mm
Output Capacity
120-2500kg/h
Processing Period
40-60 Days
HS Code
8477209000
After-sales
Engineers for Installation and Testing

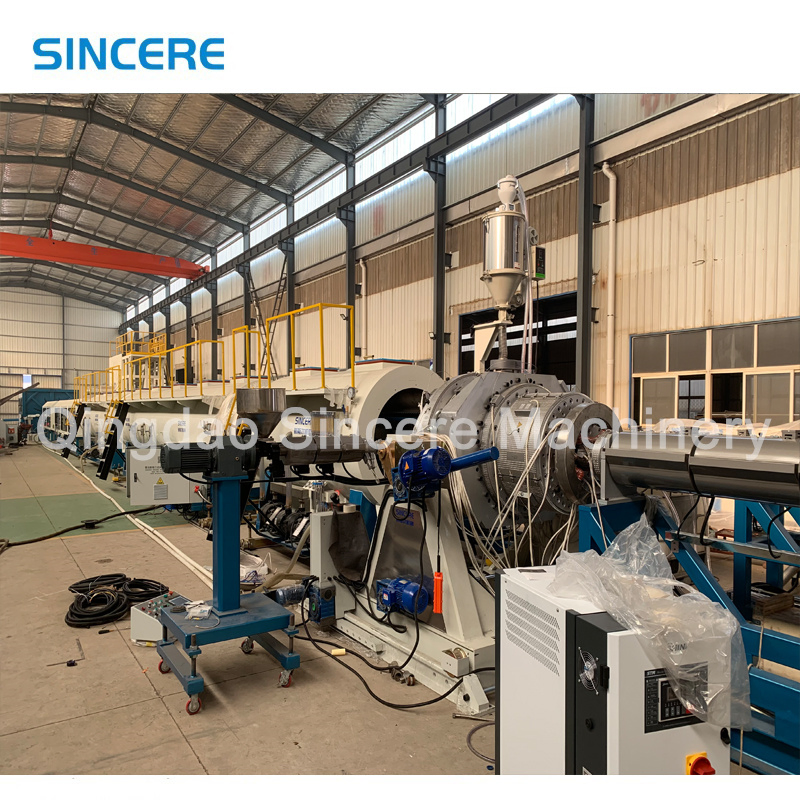

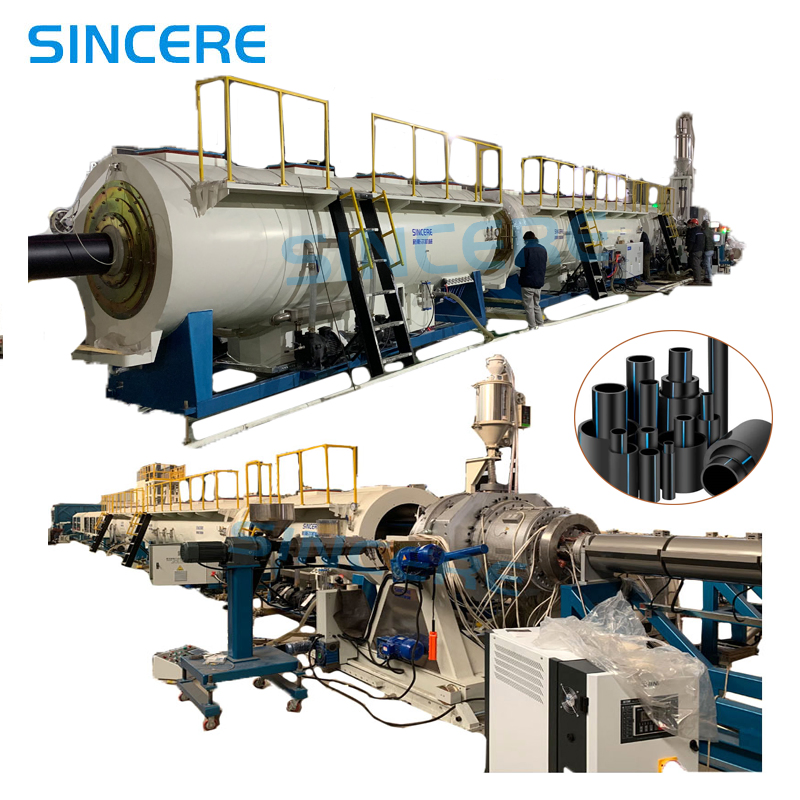

PE/PPR/HDPE Pipe Extrusion Line Overview

This high-performance extrusion line is designed for producing large diameter HDPE/MDPE, PPR, and PERT pipes. Key applications include water supply, sewer systems, marine pipes, and gas supply. The produced pipes exhibit excellent heat resistance, aging resistance, and high mechanical strength.

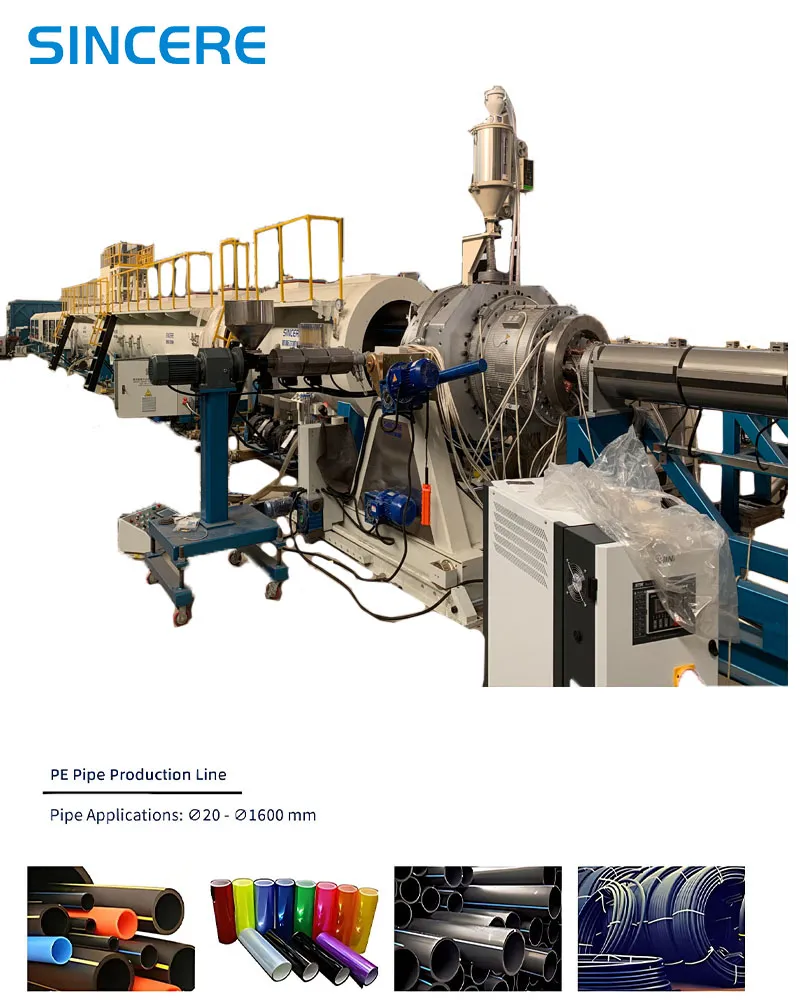

HDPE Pipe Extrusion Line
Detailed Machine Components
⚙️

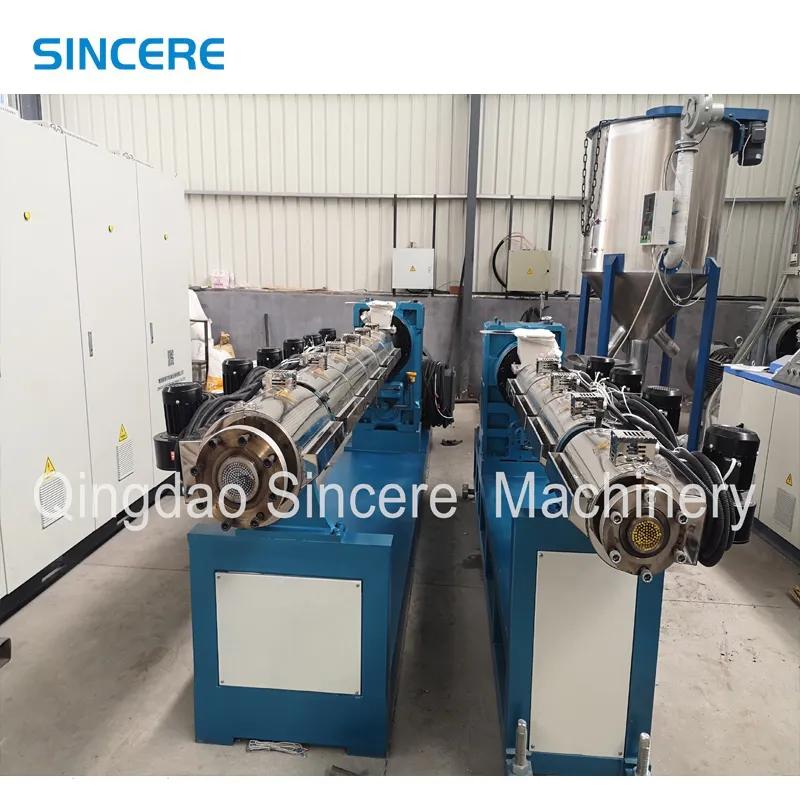

High Efficiency Extruders: Equipped with single-screw technology (SJ45 to SJ150). Features high speed, low noise reducers, and specialized screw designs for high output and lower energy consumption.

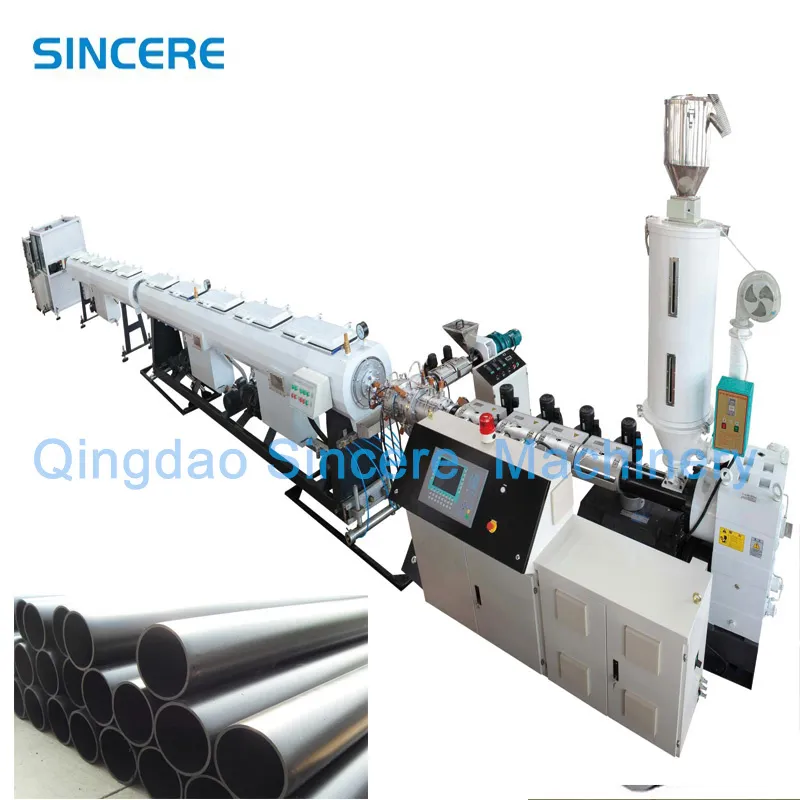

Extruder Unit
Extruder Components
🌀

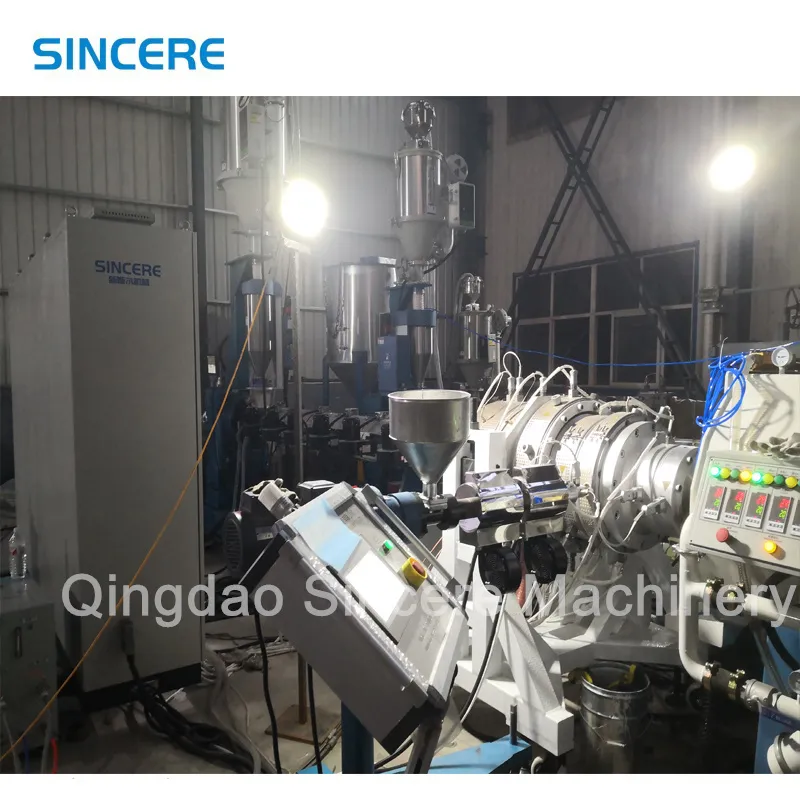

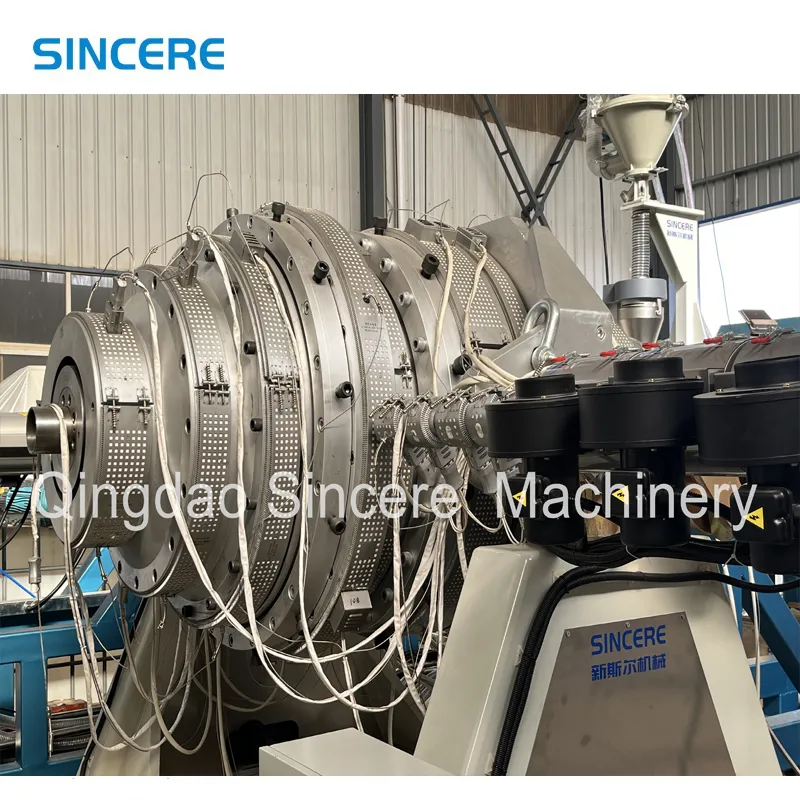

Precision Die-head: Spiral composite extrusion die-head ensures even melting pressure and flux, resulting in a smooth and glossy pipe surface. Supports multi-layer co-extrusion.
Die Head
Die Head Details
❄️

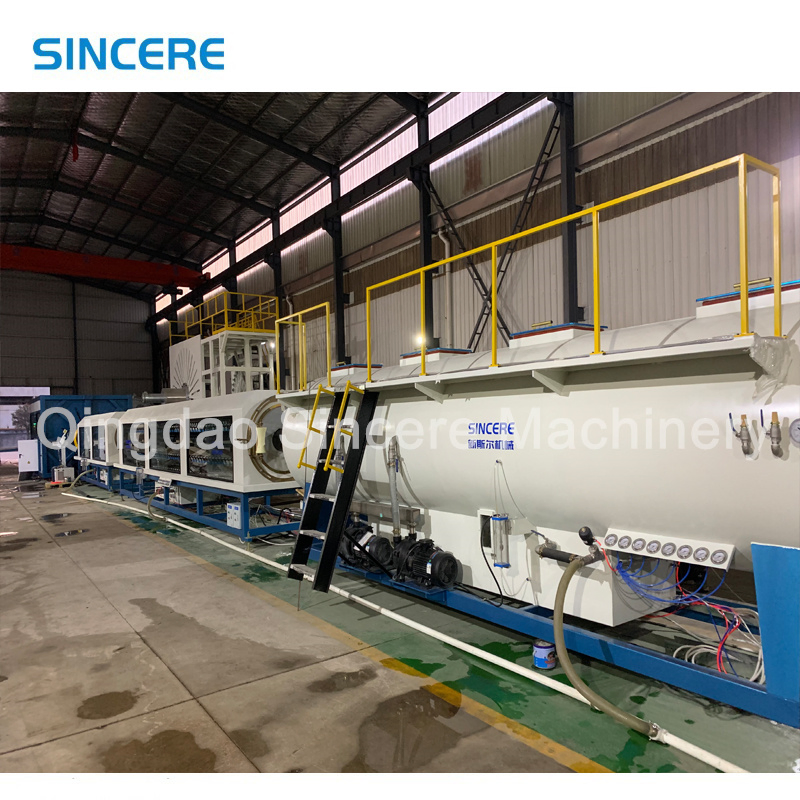

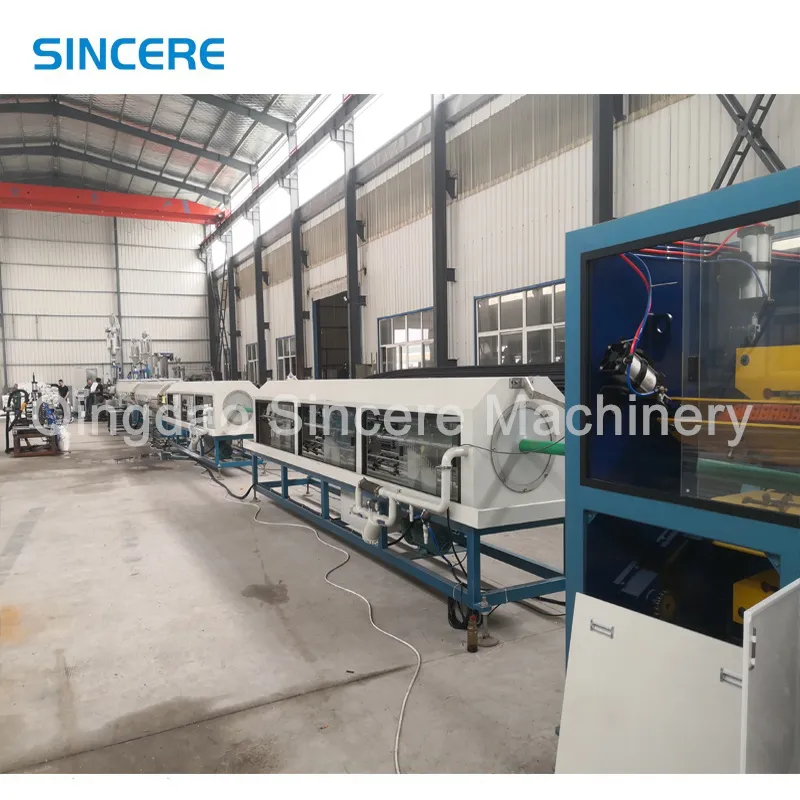

Vacuum & Cooling Tanks: Made of stainless steel for durability, ensuring precise calibration and rapid cooling for high-speed production.

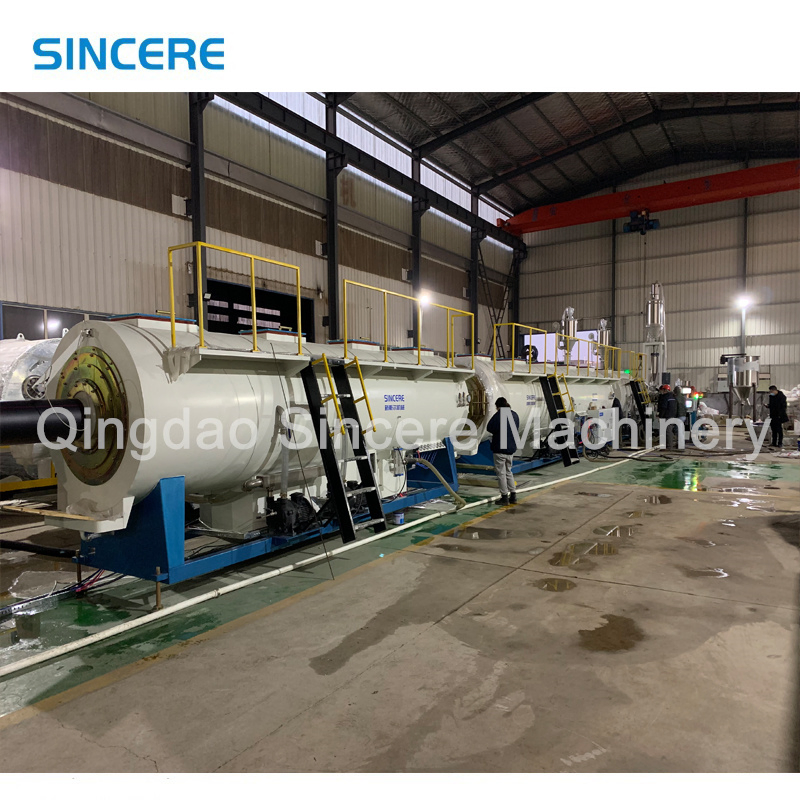

Cooling Tank
Calibration Tank
✂️

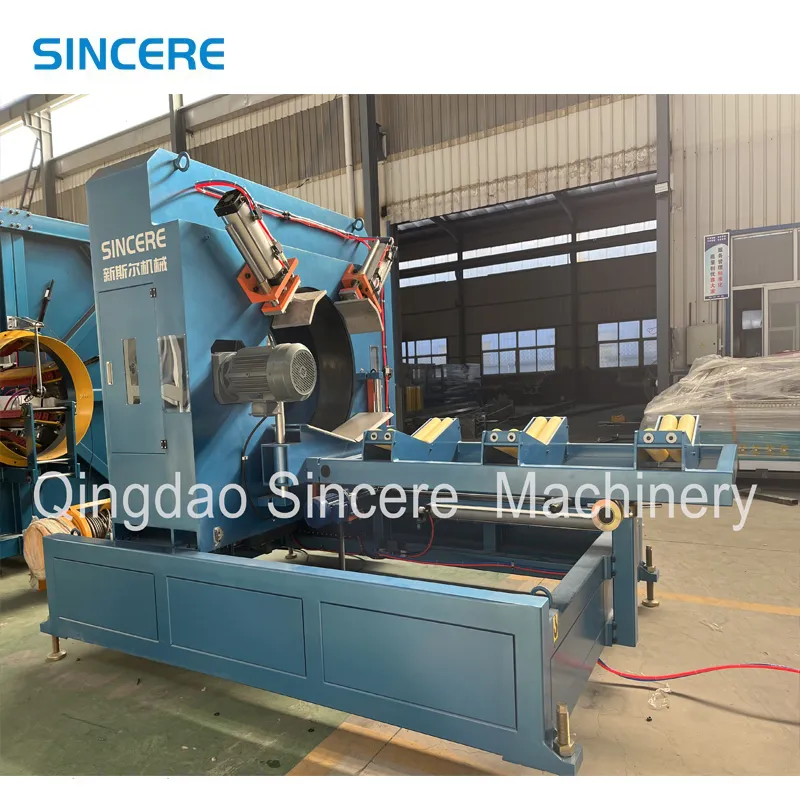

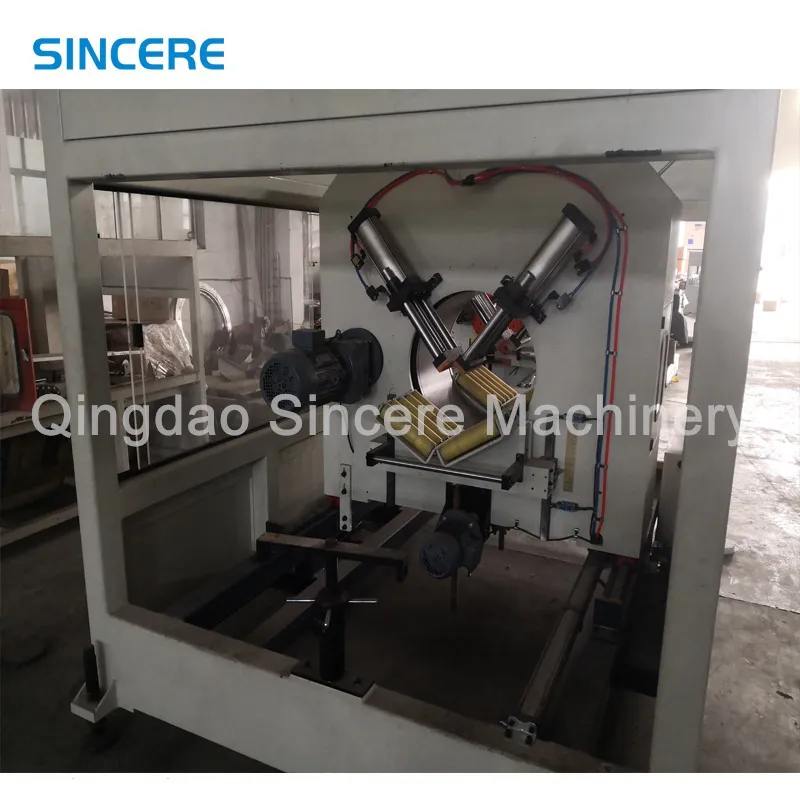

Cutting Systems: Options include No-dust cutters for clean environments and Planetary cutters for large diameter, thick-walled pipes.
Cutting Machine
Technical Parameters
Model Pipe Diameters (mm) Extruder Type Capacity (kg/h) Power (kw)
SG-6316-63SJ65/33120-180110
SG-11016-110SJ65/33150-200130
SG-25075-250SJ75/33280-350280
SG-630315-630SJ120/33550-850550
SG-1200800-1200SJ120/33*2950-1600950
SG-16001000-1600SJ150/33*21500-25001300
Final Pipe Products
PERT Pipe

PERT Pipe

Silicon Core Pipe

PE Silicon Core Pipe

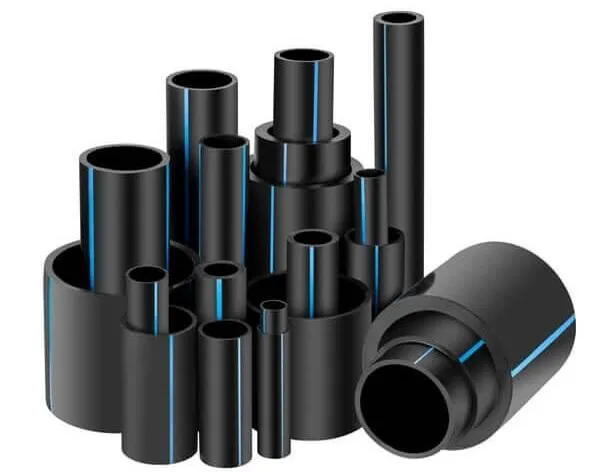

HDPE Pipe

HDPE Pipe

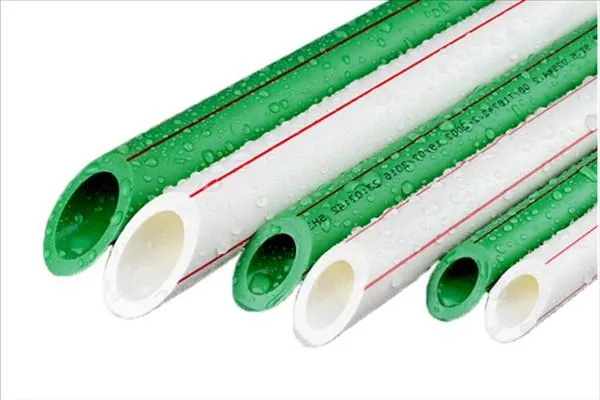

PPR Pipe

PPR Pipe

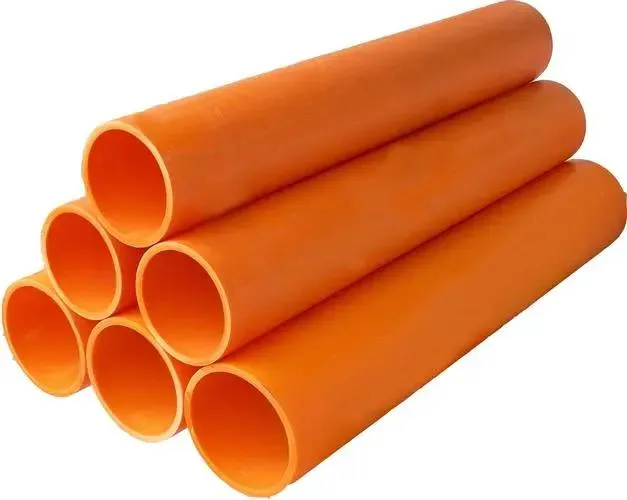

MPP Pipe

MPP Electrical Pipe

Our Professional Service
Service Team
✔️
Full installation and operation guidance provided for all customers.
✔️
Customized machinery solutions tailored to specific production needs.
✔️
One-year comprehensive warranty (excluding man-made damage).
✔️
Prompt technical support and troubleshooting solutions.
Production Excellence
Factory View
Manufacturing
Quality Control
Assembly Line
Testing Area
Finished Machine
Frequently Asked Questions
What types of pipes can this extrusion line produce?
The extrusion line is versatile and can produce HDPE, PPR, PP, PERT, and MPP pipes for various applications like water supply, gas supply, and electrical ducting.
What is the range of pipe diameters supported?
Our machinery covers a wide range from small 16mm pipes up to large-scale 1600mm diameter industrial pipes.
What brands of electrical components are used in the machine?
We use high-quality international brands including Siemens PLC touch screens, ABB, RKC, and Omron to ensure stability and durability.
Do you provide on-site installation and training?
Yes, we provide after-sales service where our engineers are dispatched to your location to install, test the machine, and train your staff.
What is the typical production capacity?
Depending on the model, the output capacity ranges from 120kg/h for smaller lines up to 2500kg/h for high-output industrial lines.
How long is the delivery and processing time?
The processing period is generally 40-60 days, followed by a delivery period of approximately 30 days after prepayment.
