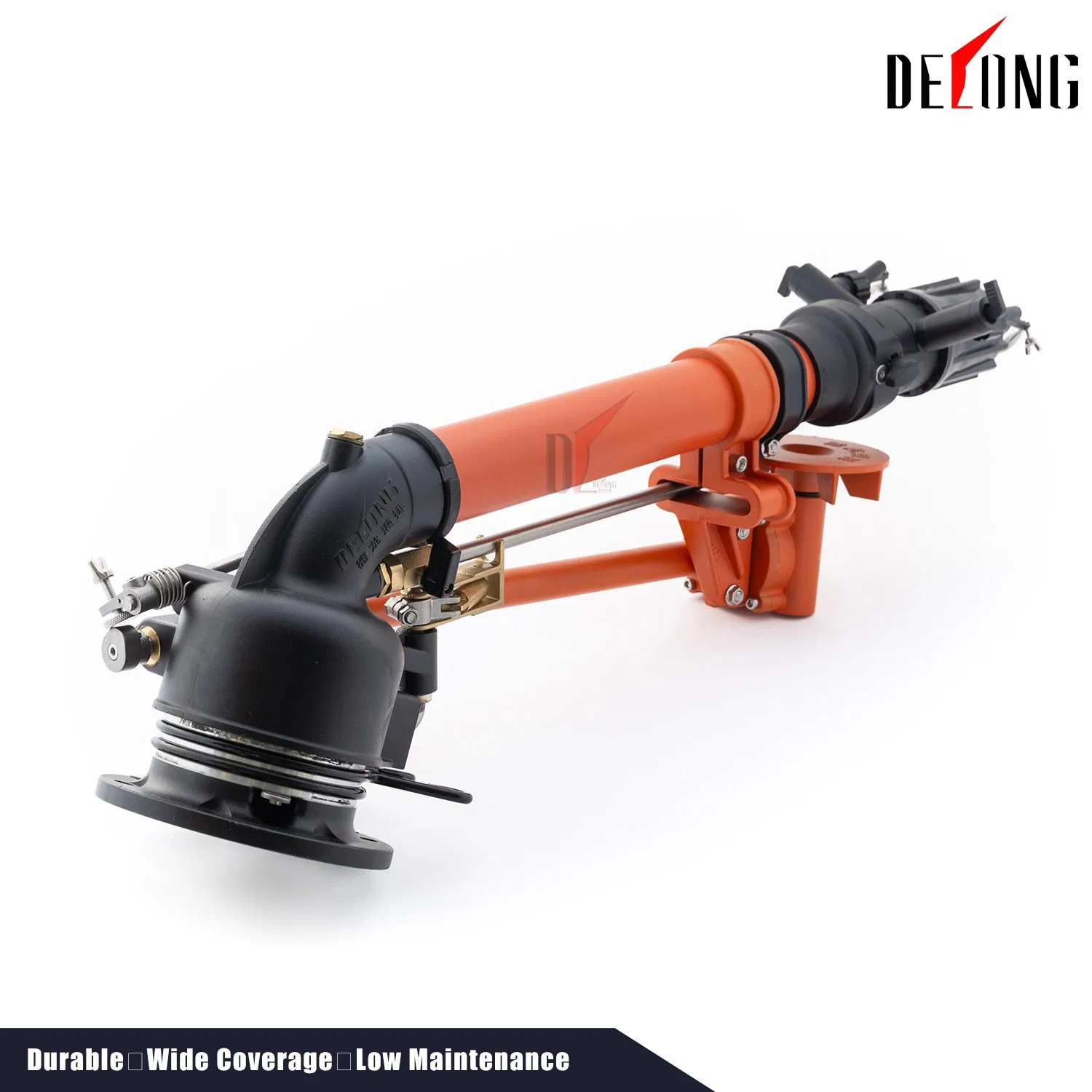

Agricultural Metal Irrigation Machinery Long Distance Big Rain Gun Sprinkler

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋

Basic Information

Model NO.

DLPL55-S

Power Source

Electricity

Irrigation Mode

Sprinkler Irrigation

Pump Type

Immersible Pump

Material

Metal

Certification

ISO9001:2008, CE

Application Field

Agriculture, Forestry

Inlet Diameter

50mm

Working Pressure

2-8bar

Flow Rate

15.5-101.1m3/H

Range Diameter

50-110m

Jet Elevation

0-45 Adjustable

💧

Product Description

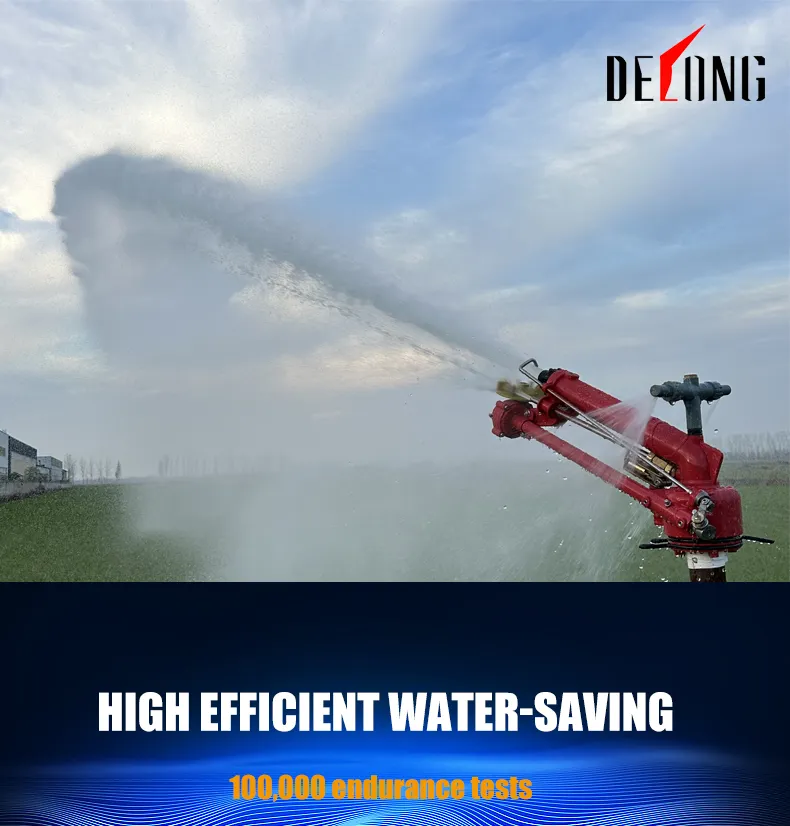

DLPL55-S spray gun is suitable for farmland irrigation and dust removal in industrial and mining industries. Popularizing water-saving irrigation technology is one of the main ways to solve agricultural water shortage and ensure stable and high grain yield.

It can be used in large and medium-sized disc sprinkler irrigation machines and effectively reduce PM2.5 in fields, power plants, ports, and railway freight yards. Equipped with a variety of nozzles, it achieves flow rates from 12.9m³/h to 100m³/h.

Key Features

Uniform water distribution with small pressure loss.

Adjustable spray Angle for various environments.

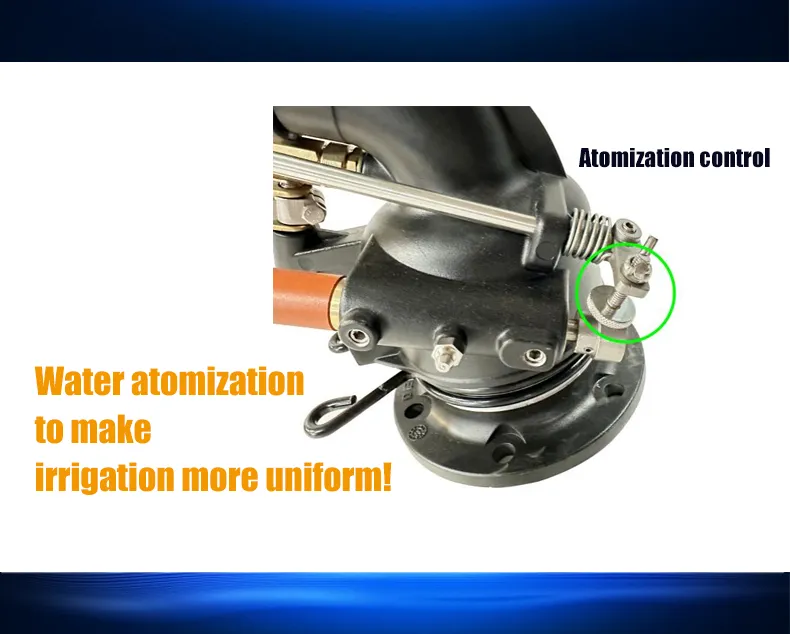

Excellent water breaking effect for uniform coverage.

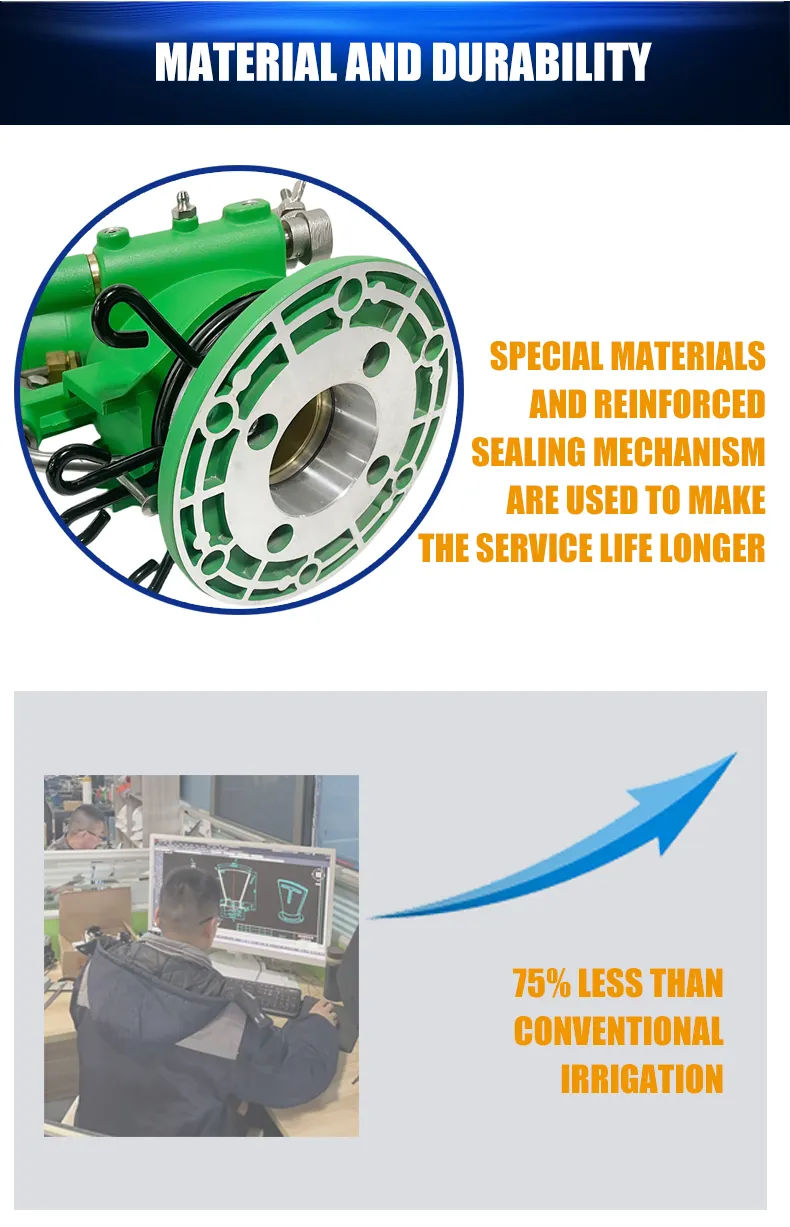

Reinforced sealing mechanism for longer service life.

Smooth main nozzle inner wall for precision.

Full circle or fan spray options available.

⚙️

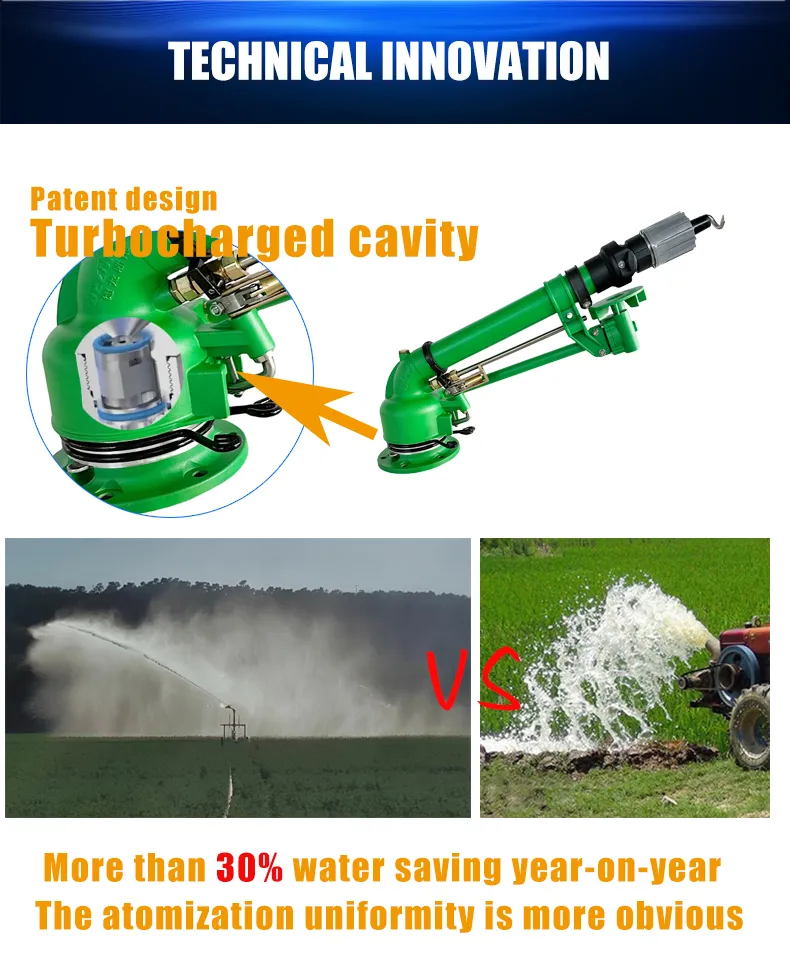

Technical Innovation & Material

🔍

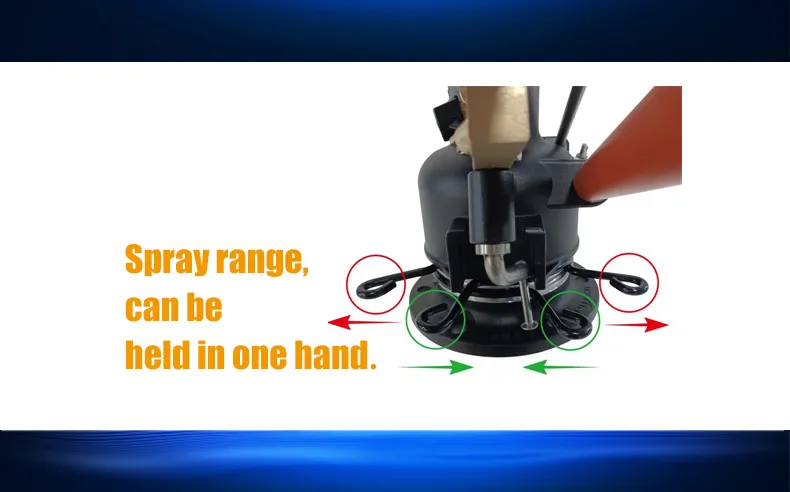

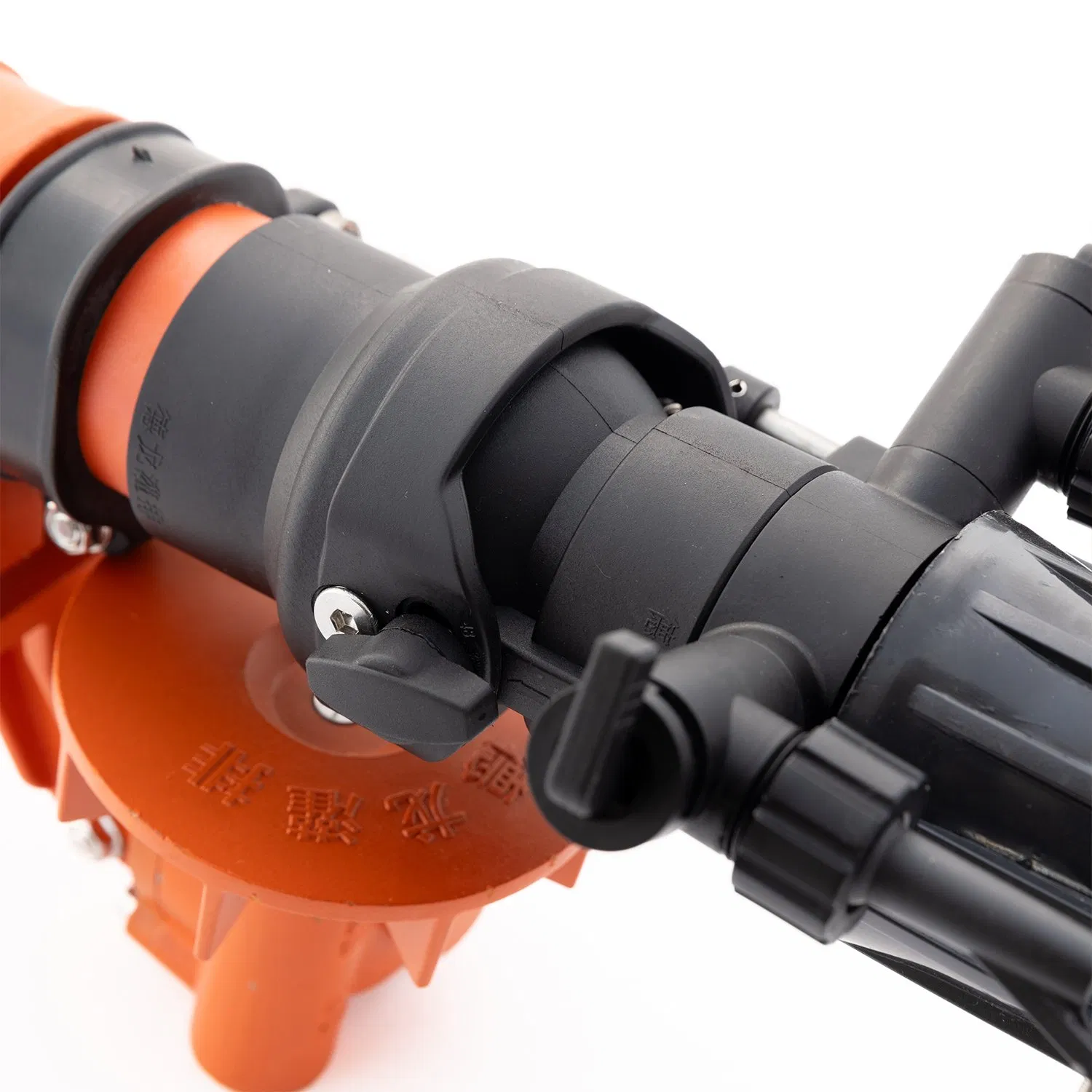

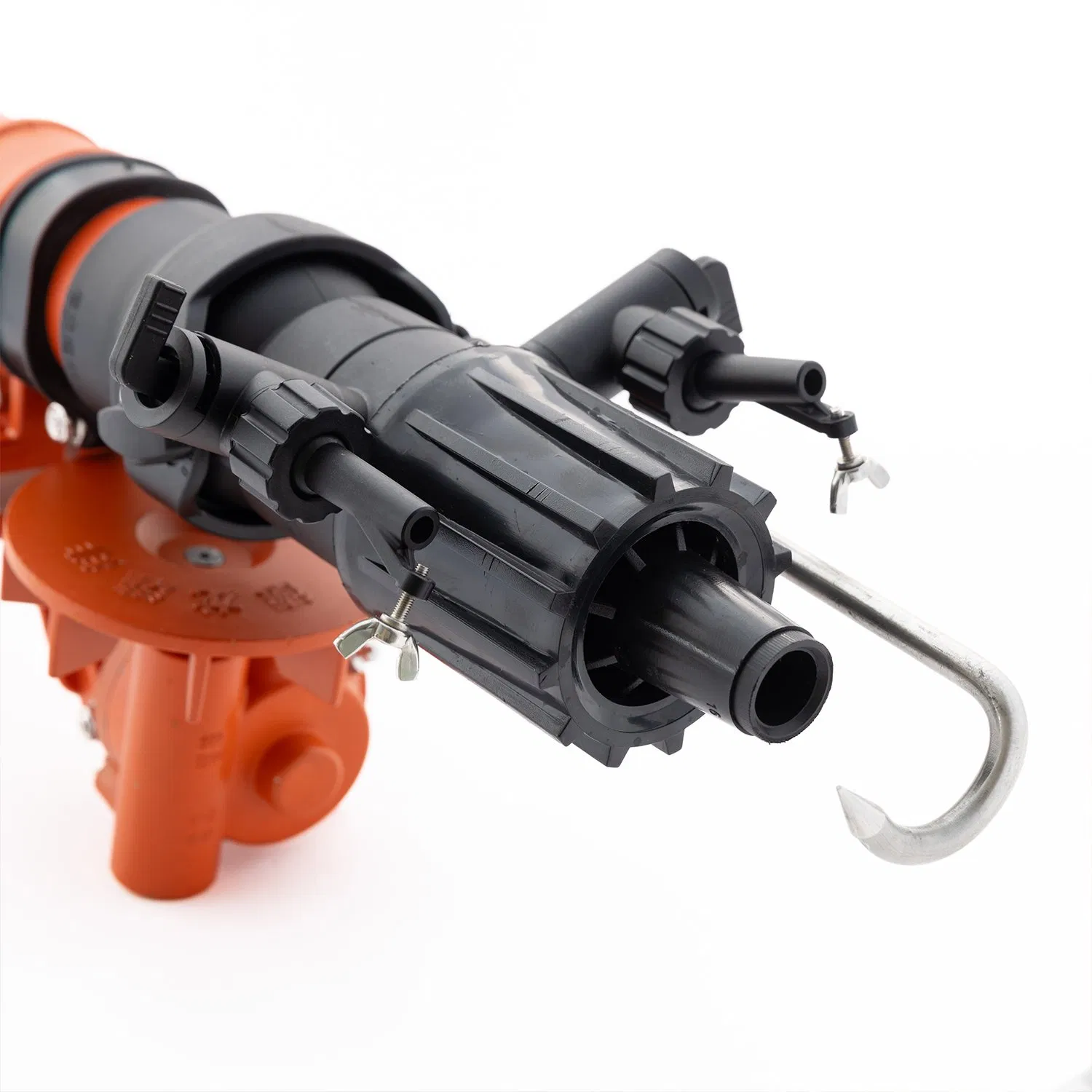

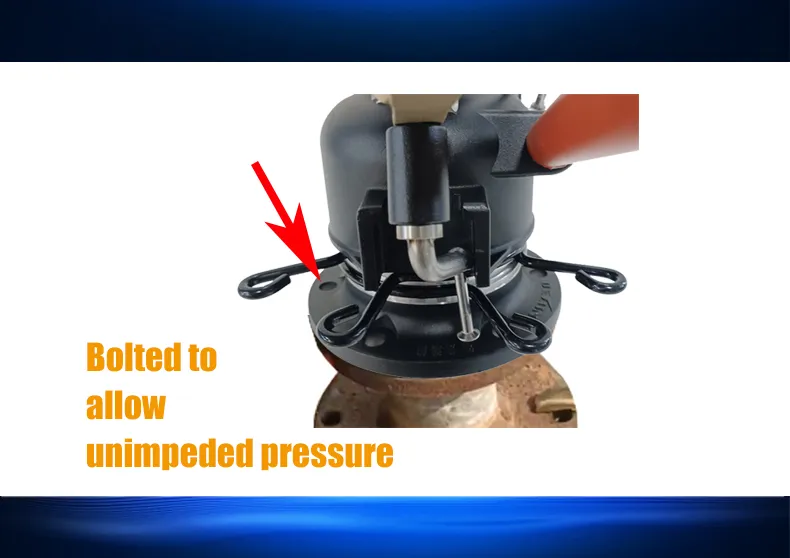

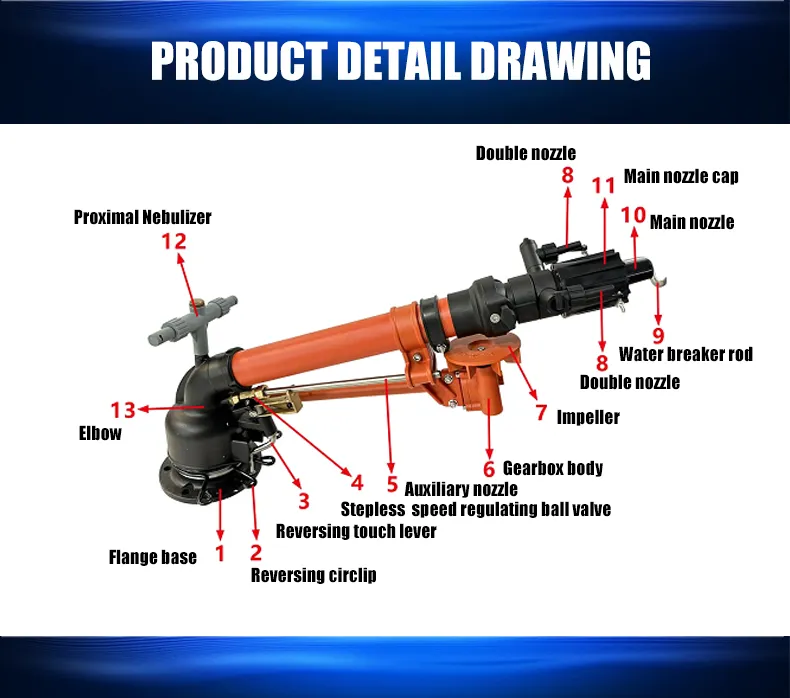

Product Detail Drawings

📊

Product Parameters

Nozzle Diameter (mm)	Pressure (bar)	Range (m)	Flow Rate (m³/h)
14	2 - 5	25 - 35	12.9 - 19.9
16	2 - 5	27 - 37	15.7 - 24.9
18	2 - 5	29 - 38	19.8 - 30.6
20	2 - 5	33 - 41.5	25.7 - 37.0
22	3 - 6	39 - 46.5	34.0 - 48.3
24	3 - 6	41 - 48.5	40.1 - 56.8
26	3 - 7	42 - 51.5	46.6 - 70.6
28	3 - 7	44 - 53.5	56.1 - 81.9
30	4 - 6	47 - 51.5	73.6 - 86.6

🌍

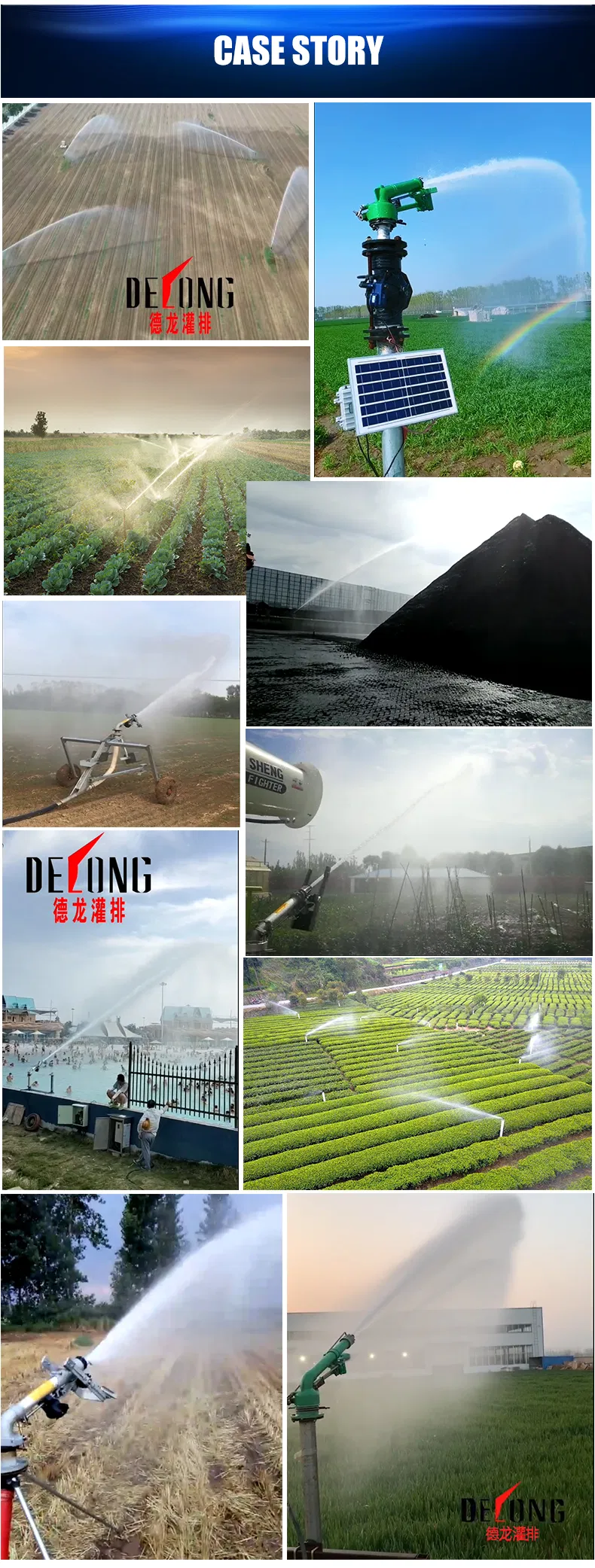

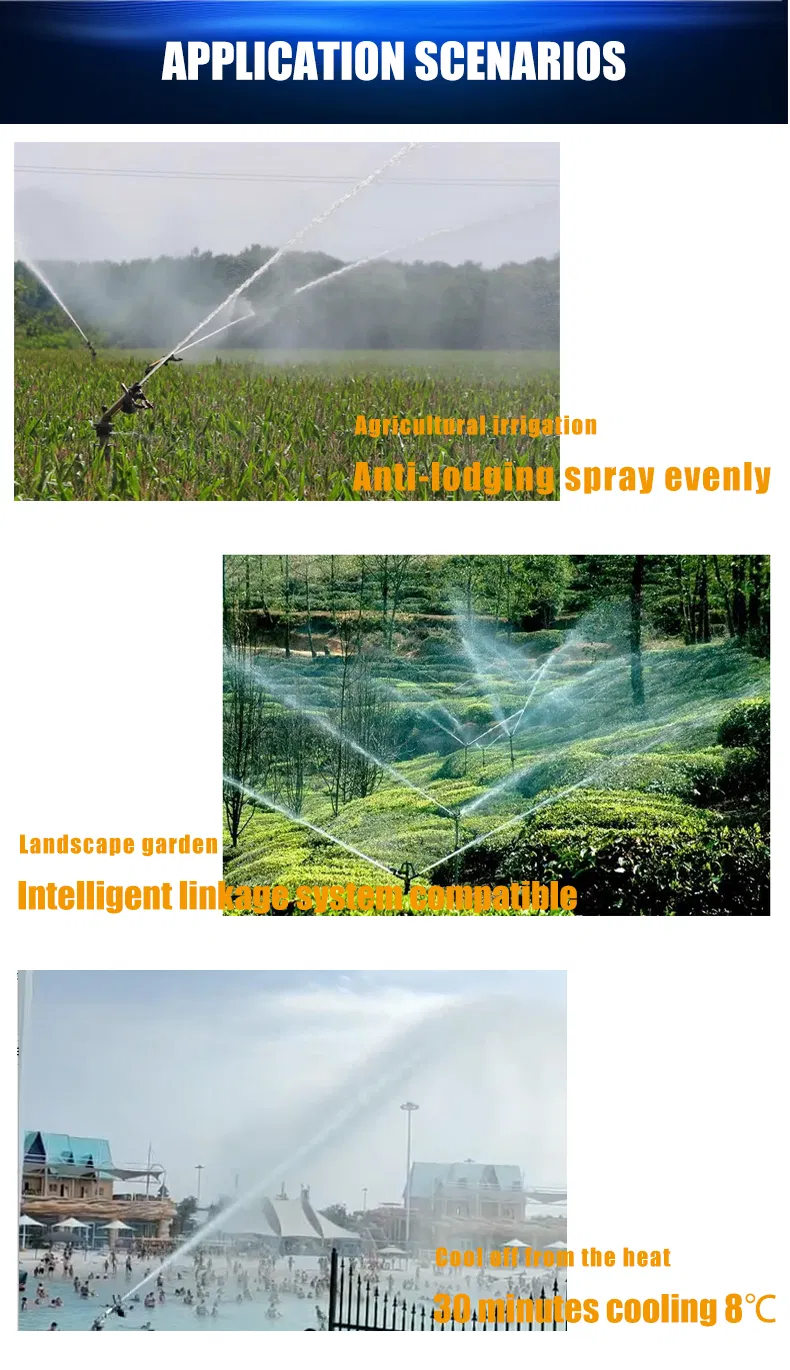

Application Scenarios & Cases

Frequently Asked Questions

What are the primary applications for the DLPL55-S spray gun?

It is ideal for large-scale farmland irrigation, landscaping, and industrial dust suppression in areas like power plants, ports, and coal yards.

How far can this rain gun spray?

The DLPL55-S features a maximum injection diameter of up to 110 meters, depending on the nozzle size and working pressure.

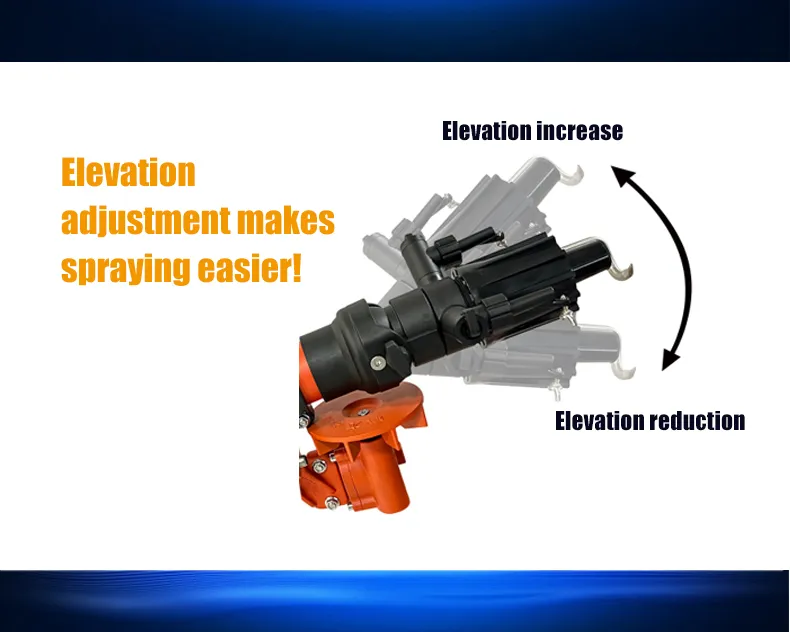

Is the spray angle adjustable?

Yes, the jet elevation angle is adjustable from 0 to 45 degrees to meet different environmental and industrial requirements.

What materials are used in its construction?

The spray gun is made of high-quality reinforced metal and special sealing materials to ensure durability and a long service life.

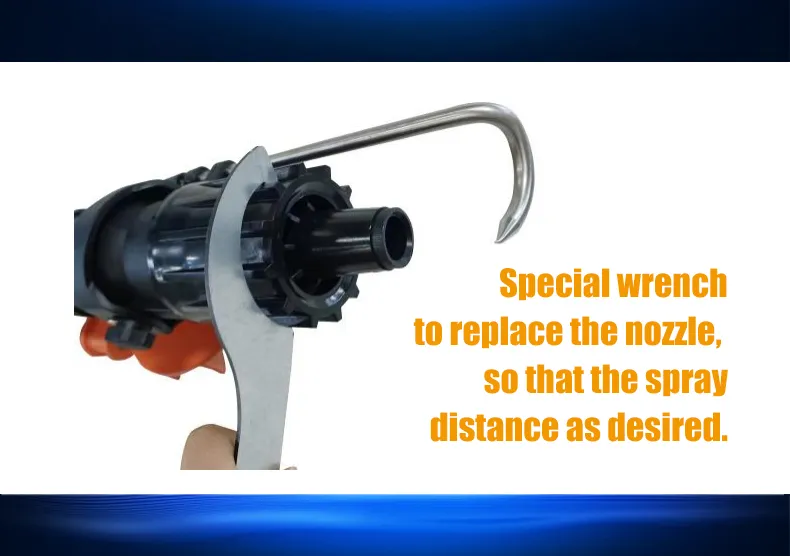

Can I choose different nozzle sizes?

Yes, various nozzle diameters ranging from 14mm to 30mm (standard sizes 16, 18, 20, 22mm) are available to customize the flow rate.

What is the required working pressure?

The gun operates efficiently within a pressure range of 2 to 8 bar.
