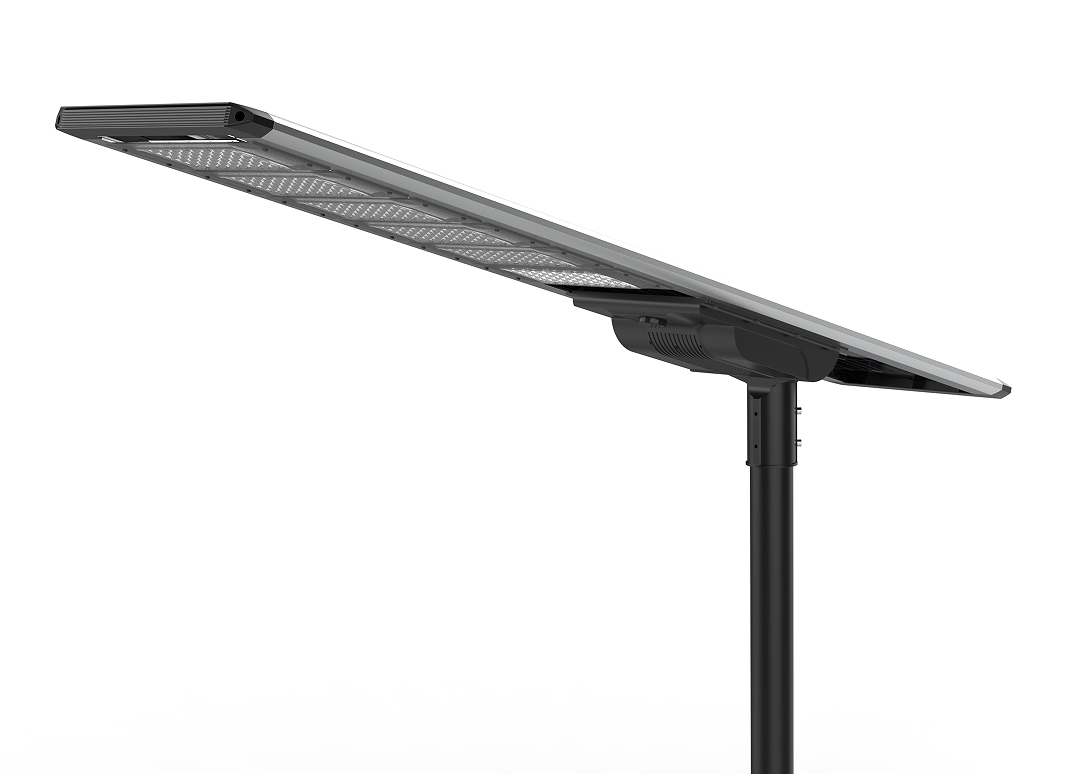

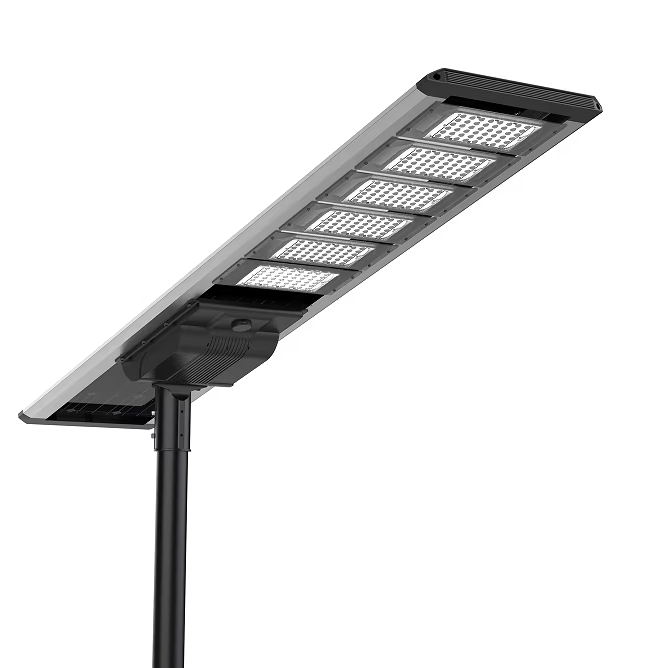

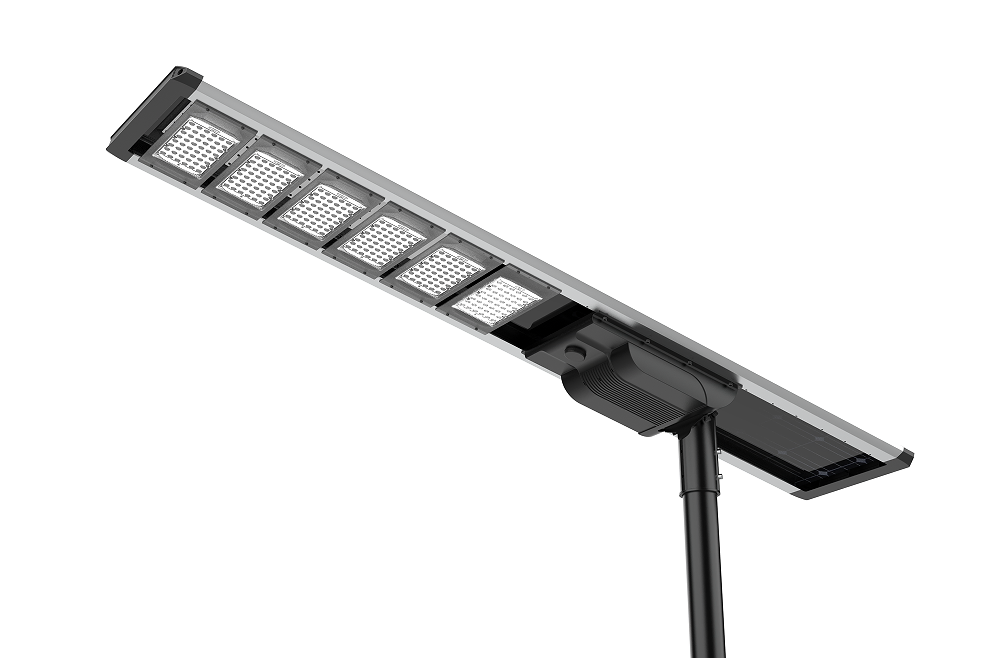

200W High Power Integrated Solar Lamp Motion Sensor IP66 Outdoor Lighting

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
JKC-FX200W-PLUS
Lamp Body Material
Aluminum Alloy
Light Type
Solar
Color Temperature
Cool White
Power
200W
Illumination Time
12h
Cell Type
LiFePO4
IP Rating
IP66
Solar Panel
Mono Silicon
Controller
MPPT
LED
USA Bridgelux 5050
Warranty
3-Year
Technical Specifications
ModelFX-200W-PLUS
LED ChipsBridgelux chips 5050 (Lifetime 100,000 hours)
Lumen Efficiency190LM/W
Color Temperature6000K ~ 6500K (Customizable)
LiFePO4 Battery75AH 12.8V
Solar Panel18V 200W High Efficiency Monocrystalline Silicon
Install Pole Diameter70-76mm
Mounting Height10~12m
Charging Time6 hours by bright sunlight
Working Time5-7 Cloudy/Rainy days autonomy
MaterialHigh Class Aluminum
SensorMicrowave Motion Sensor

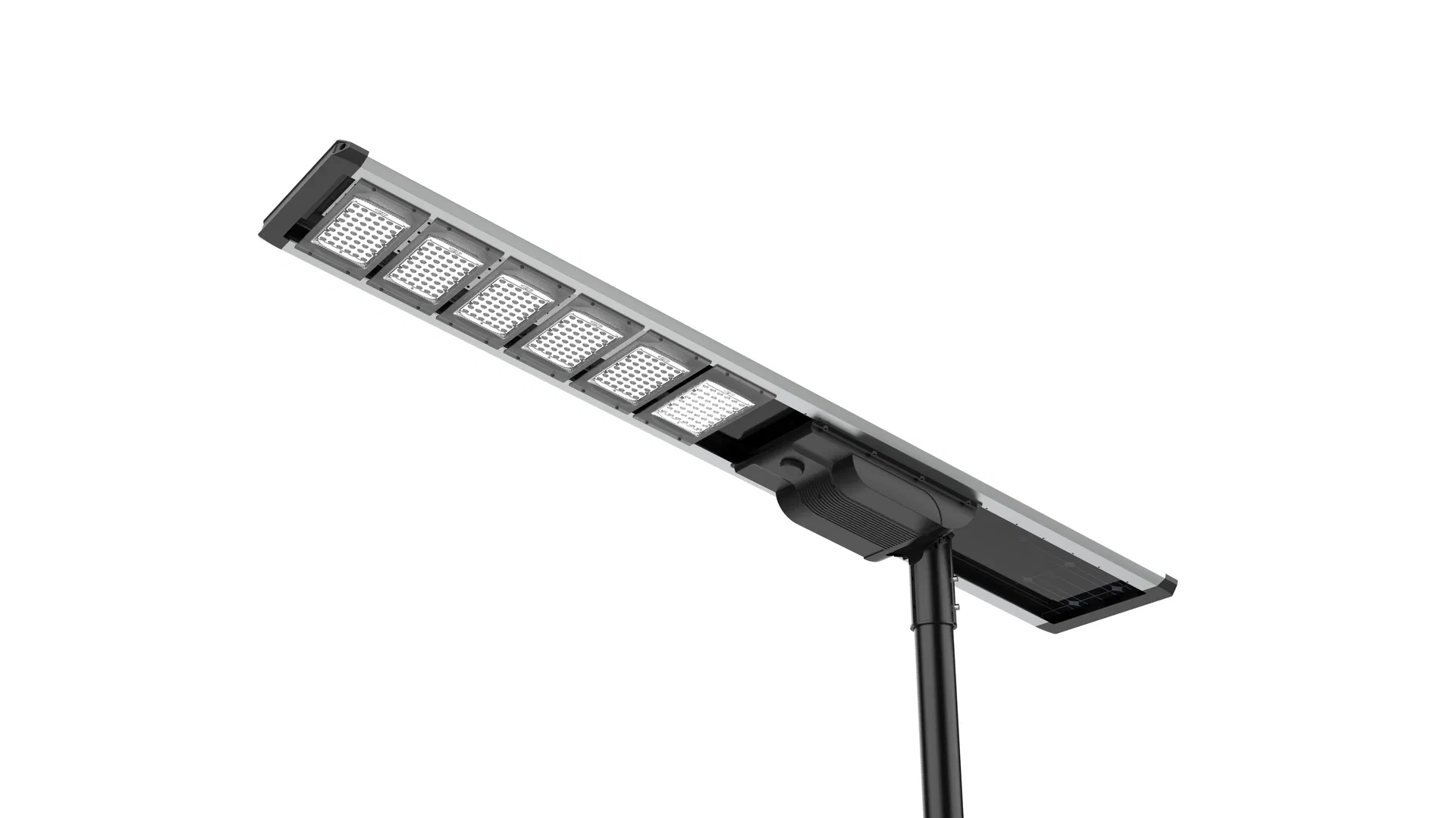

Integrated Solar Lamp Detail 1

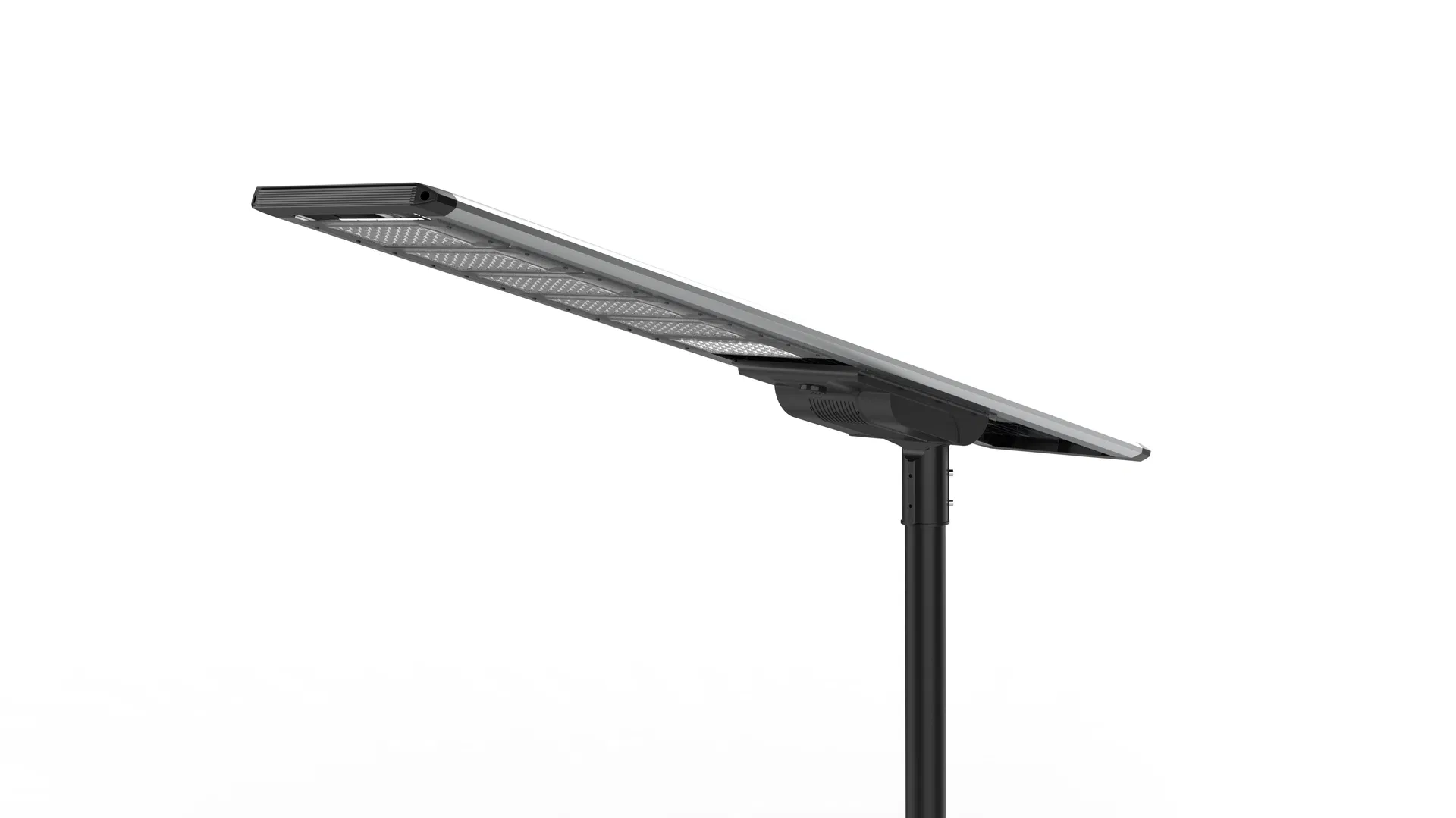

Integrated Solar Lamp Detail 2

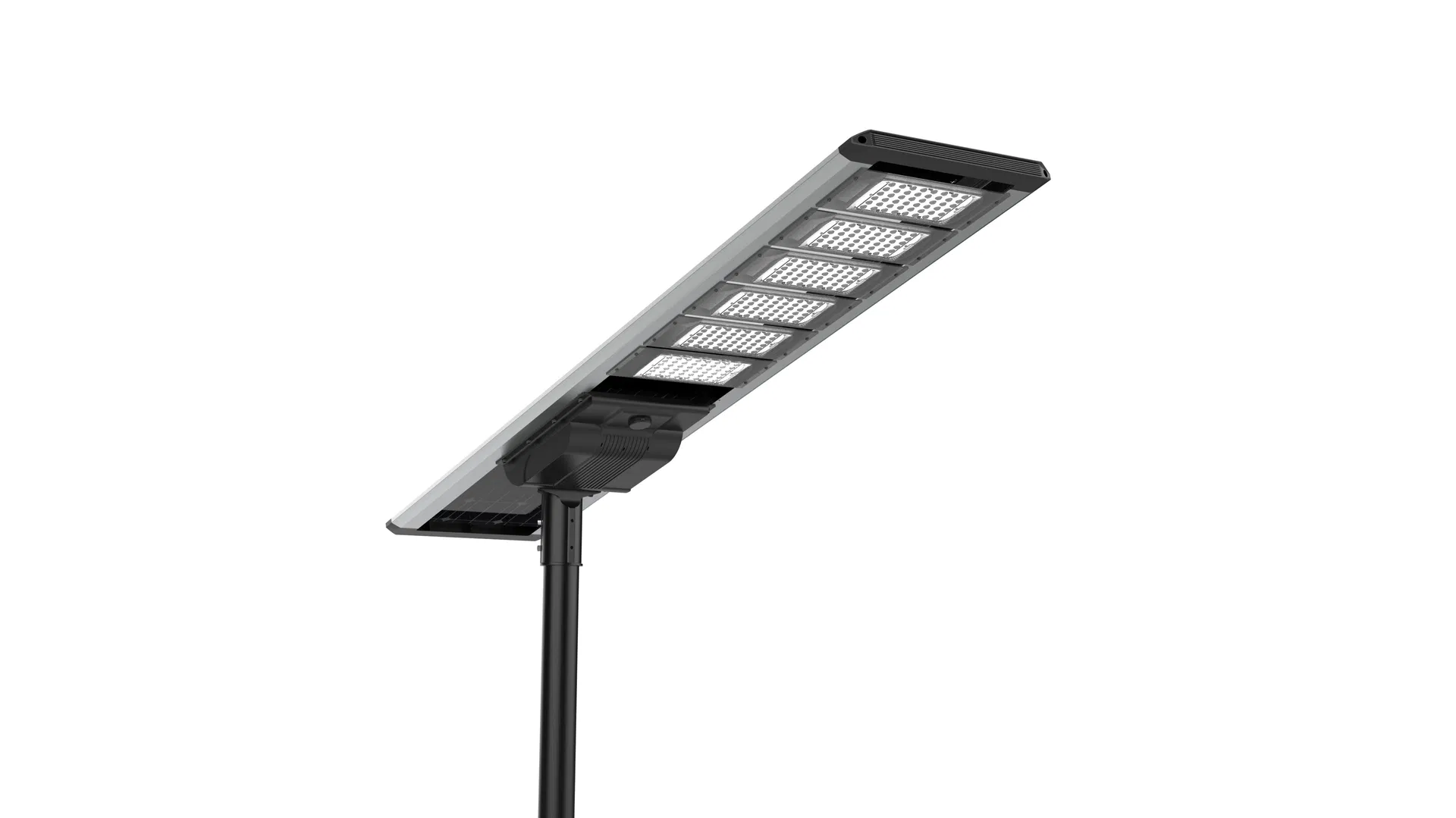

Integrated Solar Lamp Detail 3

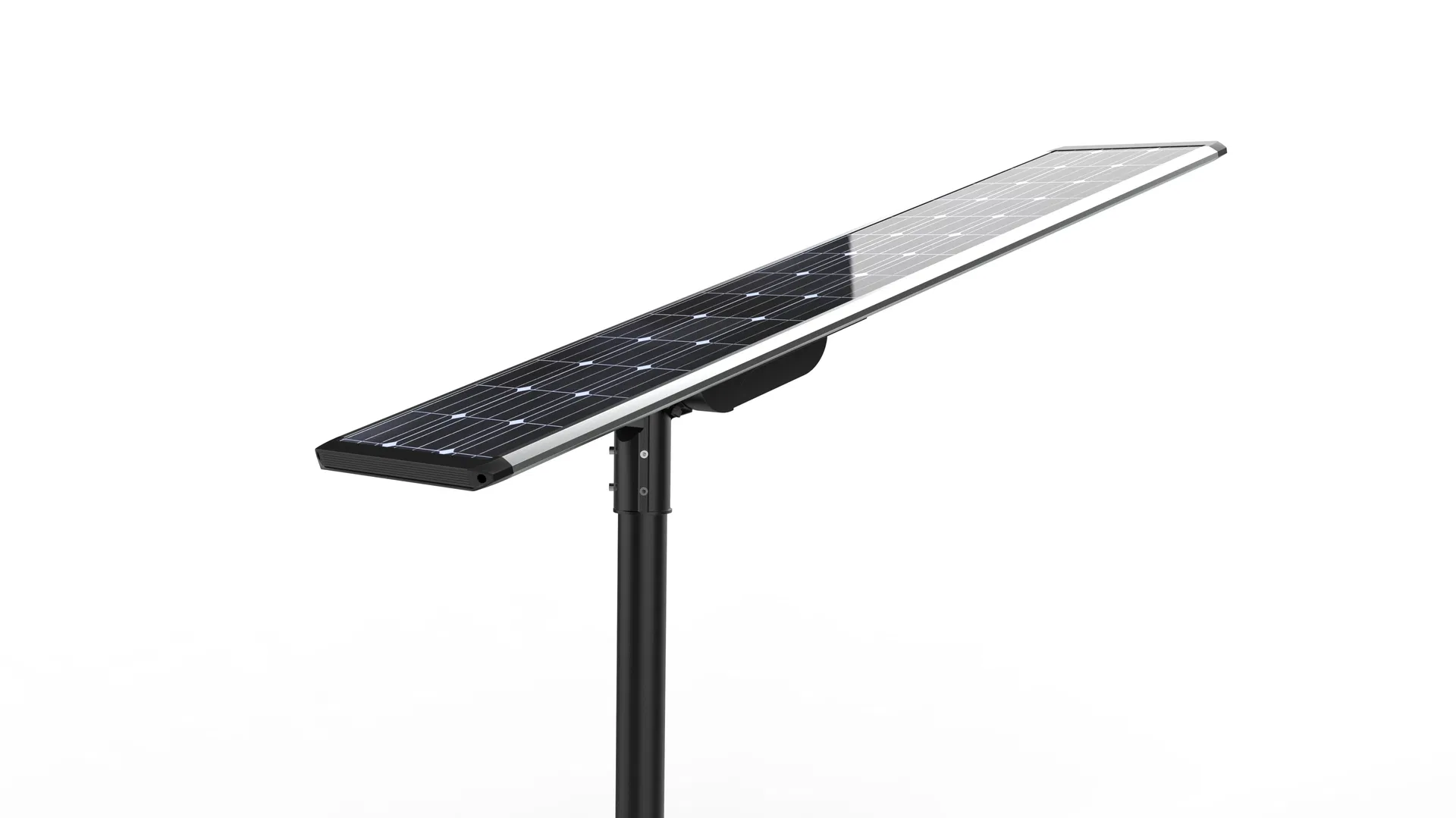

Integrated Solar Lamp Detail 4
Product Features
Product Feature 1

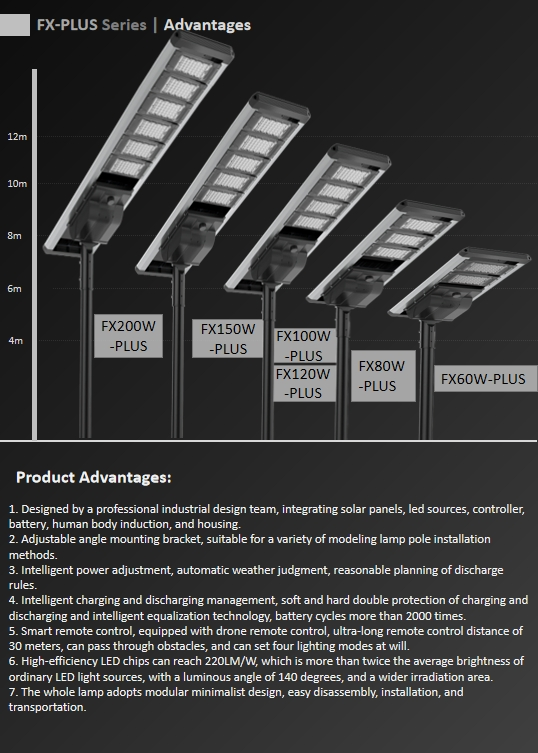

Product Feature 2

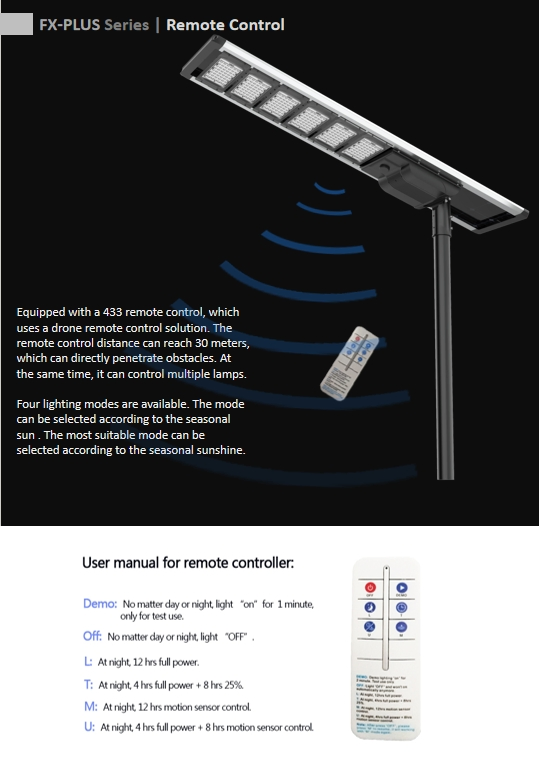

Product Feature 3

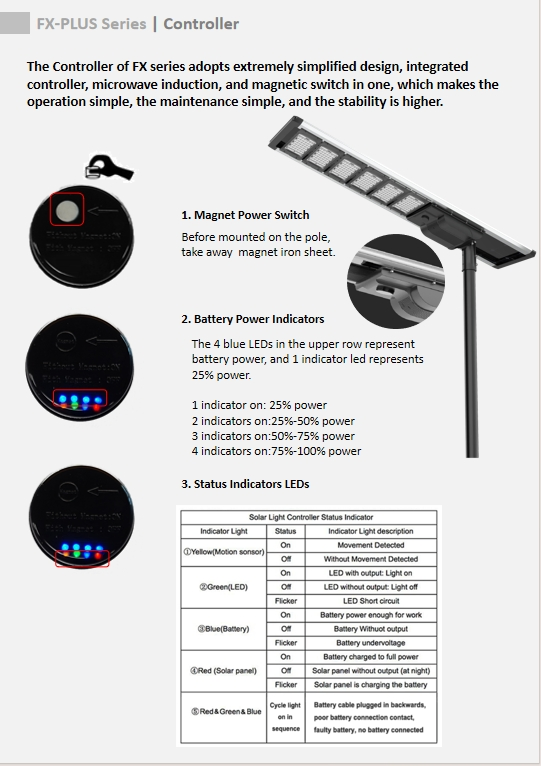

Product Feature 4

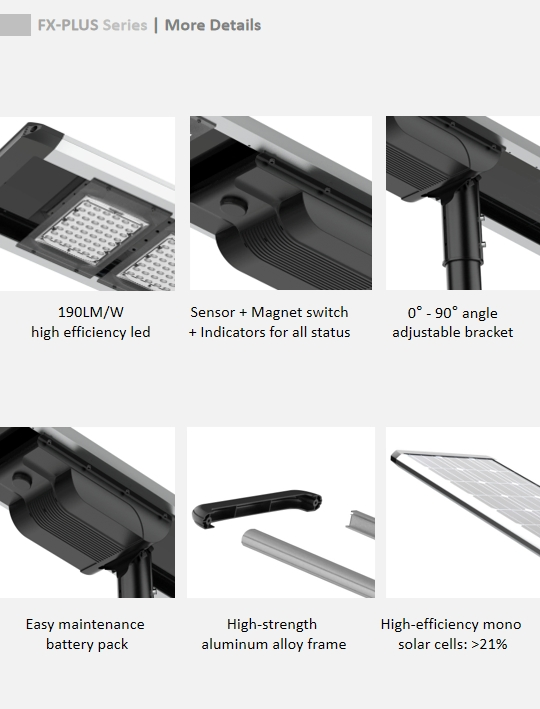

Product Feature 5

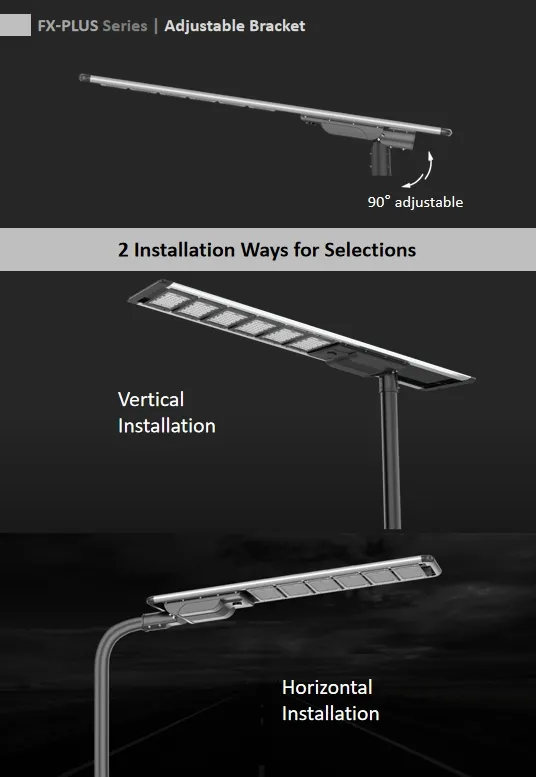

Product Feature 6
📦 Packing & Delivery

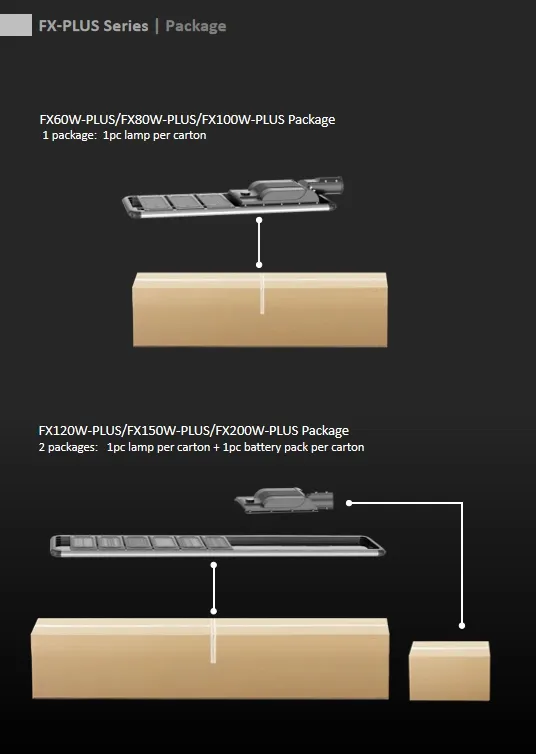

Packing Details
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

Sample: Individually packaged in carton boxes, one light per box; wooden frame packaging is optional.
Bulk order: Individually packaged in carton boxes, one light per box; pallet or plywood case packaging is optional. For split-type solar streetlights, the standard packaging for the solar panels is plywood case.
🏢 Production Capability
Factory Video Cover

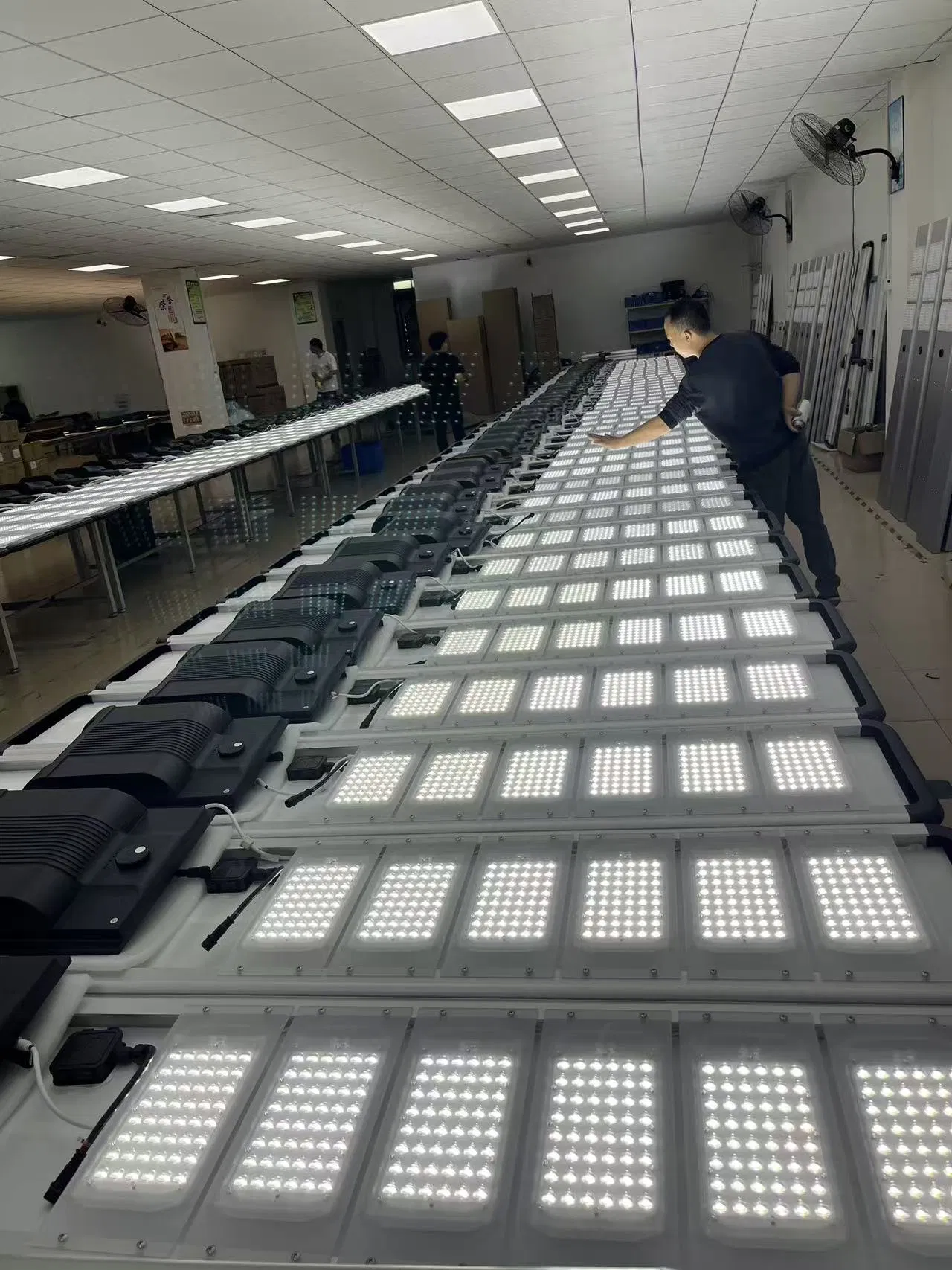

We specialize in lighting electronic products, photoelectric products, chargers, and solar electronic products. Our facilities boast six production lines with a daily production capacity of 600 units per line. Covering an area of 2,950 square meters, we maintain high standards through stringent quality control. Our R&D team can launch new products within 10 days and offers services ranging from customized designs to sample processing. With 12 years of export experience, we achieve a substantial annual output in the solar light sector, reaching global clients in North America, Southeast Asia, Africa, and the Middle East. Recognized for our quality, we hold CE, RoHS, IP66, IK09, IEC, and ISO9001 certifications.
Factory View 1
Factory View 2
Factory View 3
Certifications
Product Certifications
🛠 After Sales Service & Support

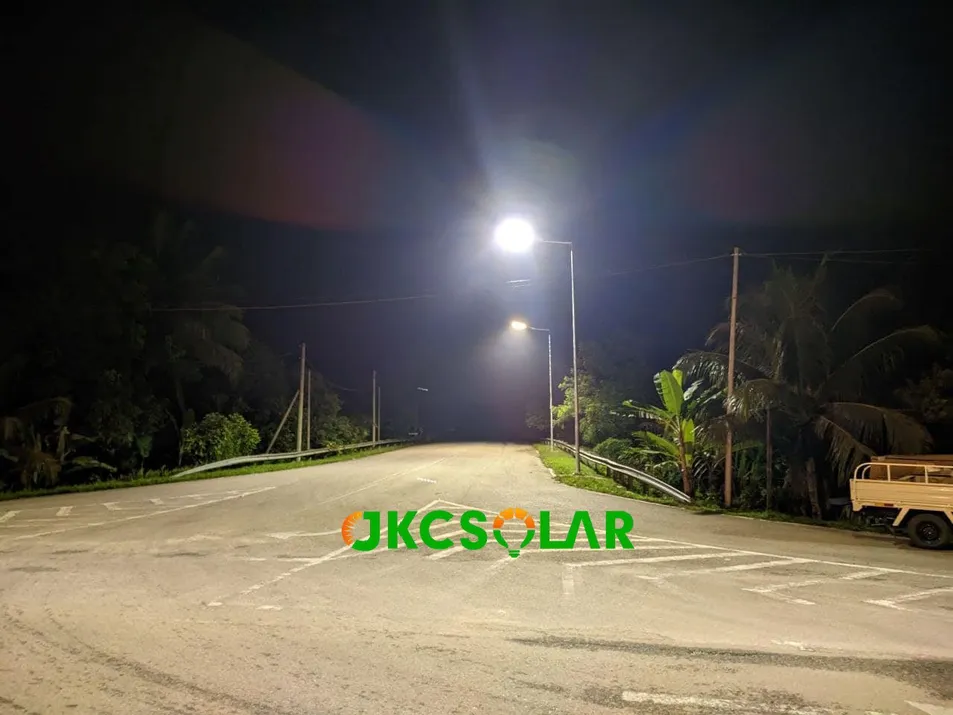

Service 1

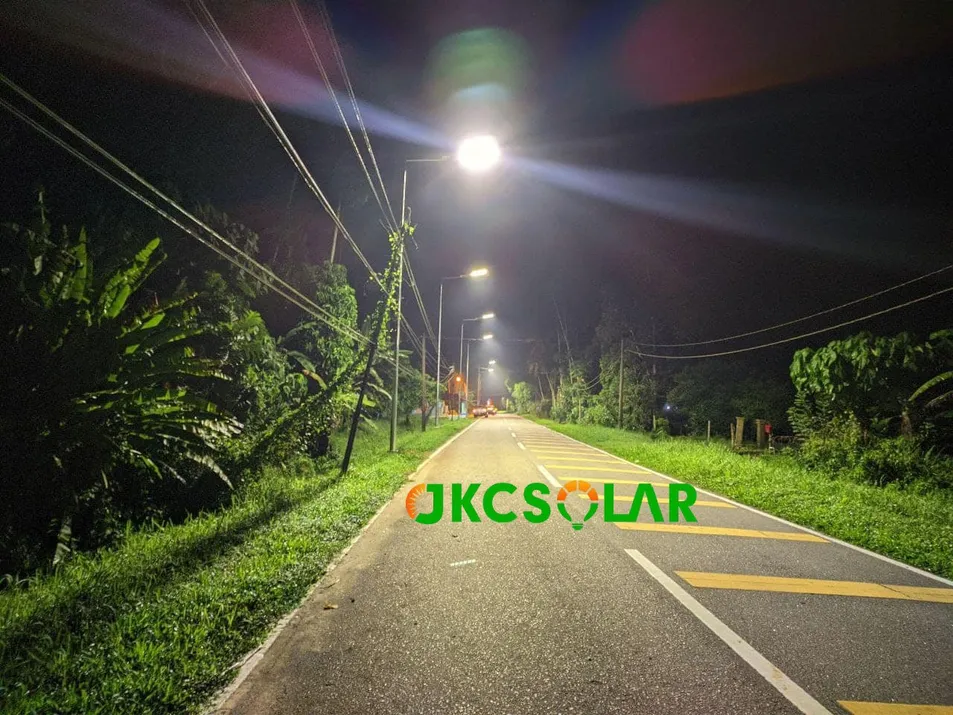

Service 2

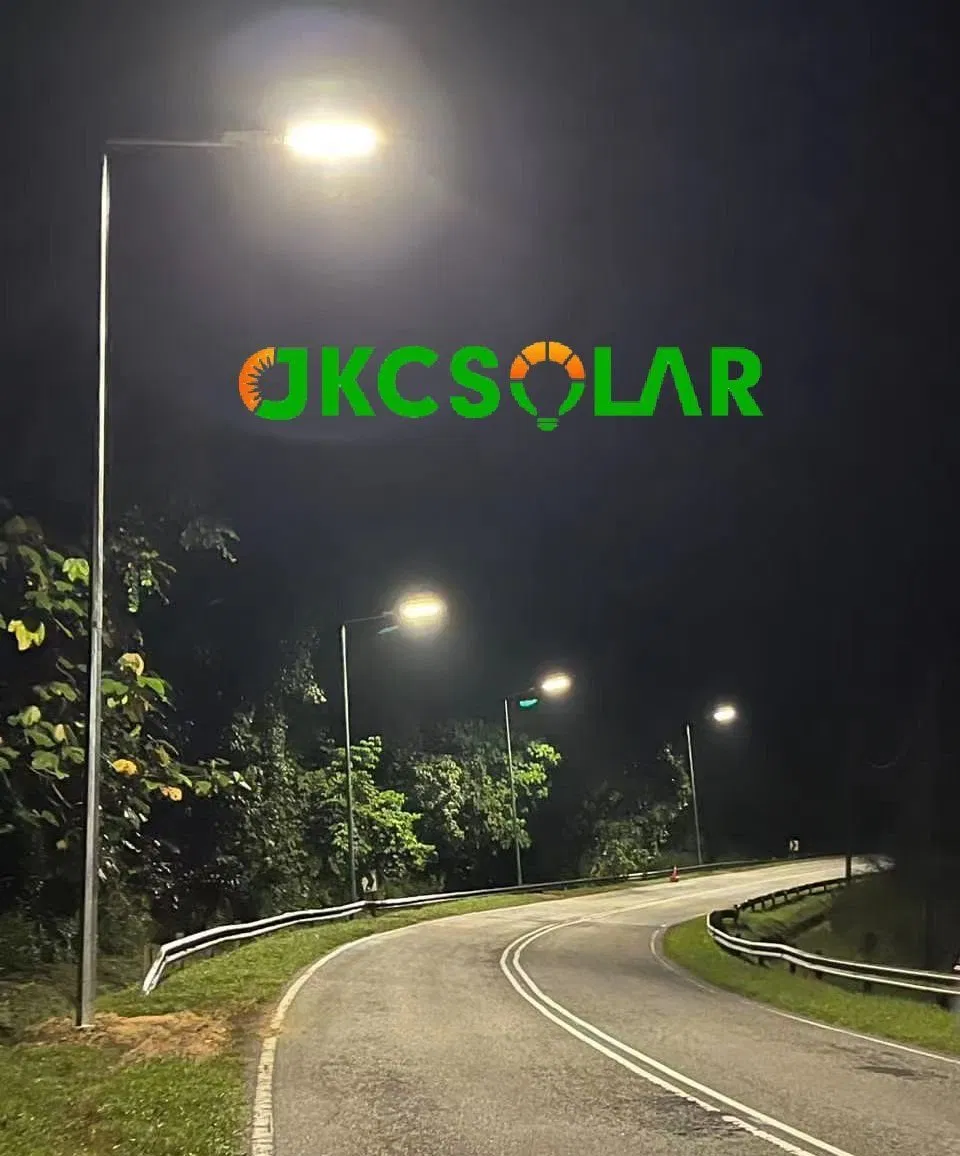

Service 3

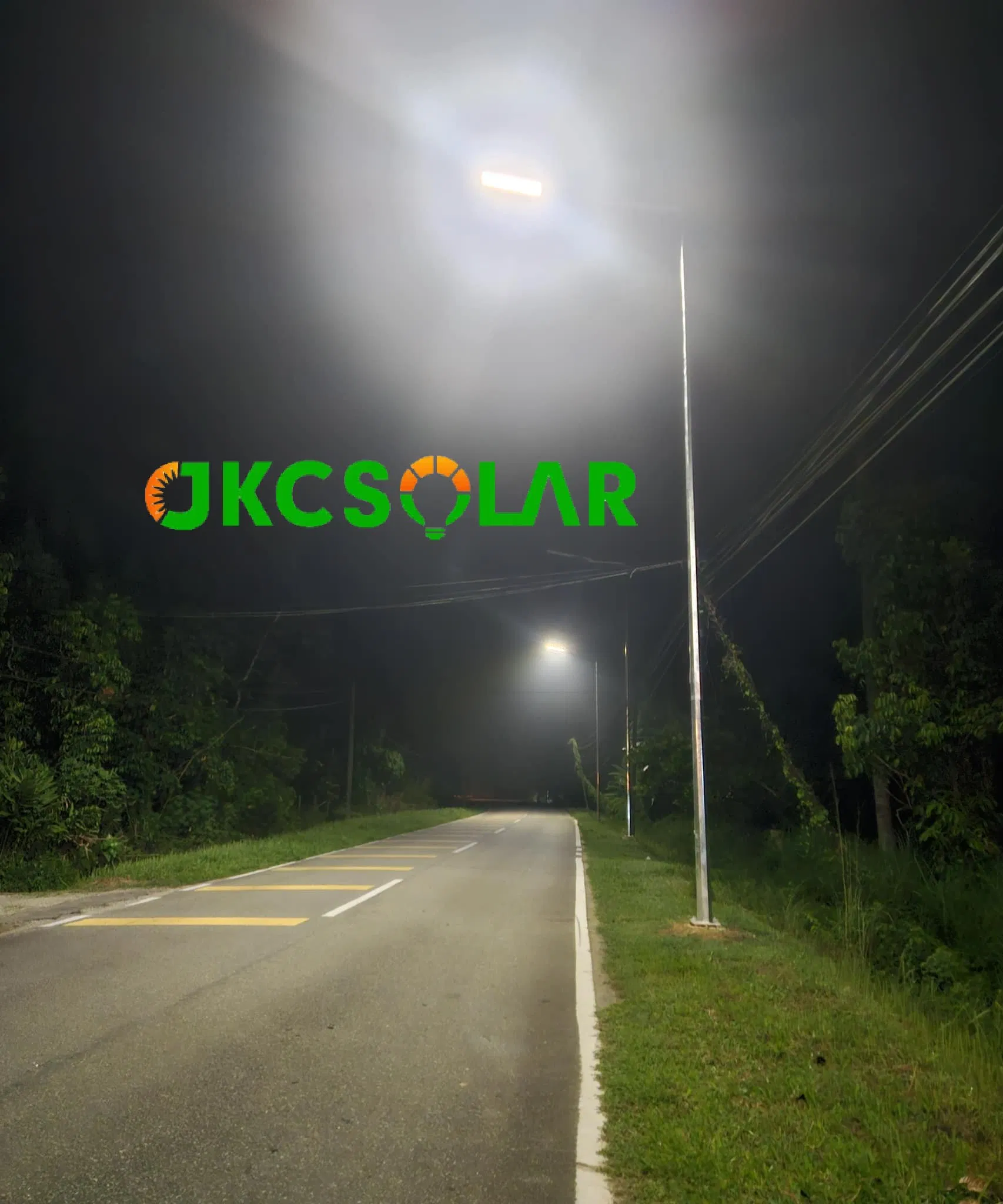

Service 4
Frequently Asked Questions
Why choose integrated all-in-one solar LED street lights?
We offer over 10 years of expertise in LED lighting with a focus on top-quality components. Our facilities ensure short delivery times and strict quality control for all bulk orders.
How long is the warranty period?
Standard warranty is 3 to 5 years. If any quality issues occur during this period, we provide free replacements to ensure your project remains operational.
What color temperatures are available?
While 6000K-6500K is standard, we can customize the color temperature anywhere from 2700K to 7000K to meet specific application needs.
How does the light perform in rainy or snowy weather?
The lights are IP66 waterproof. After a full charge, the high-capacity LiFePO4 battery supports 5-7 continuous rainy or cloudy days of operation.
What are the shipping options for international orders?
Samples are typically shipped via express or air (3-6 days). Bulk orders are shipped by sea, taking 15-35 days depending on the destination port.
Is the motion sensor customizable?
Yes, our lights come equipped with advanced Microwave Sensors that automatically adjust brightness based on movement to conserve battery life.
